Waterproof USB Type-A cable / connector
Supports power delivery and data communication / Suitable for outdoor and industrial use
Cables (For External Wiring)

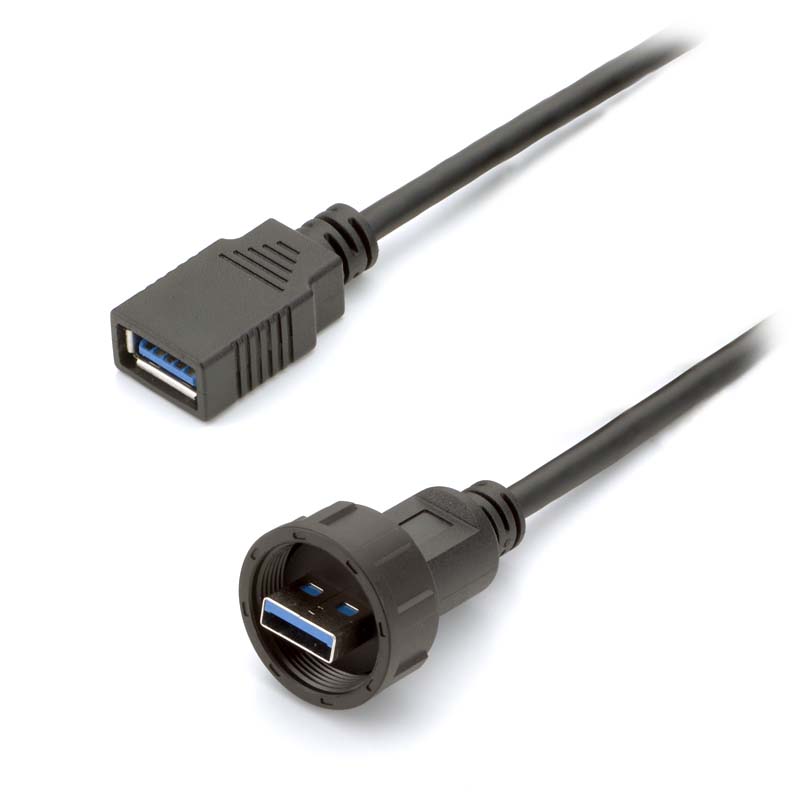

| Gender | Female Waterproof Side: Male |
| Length | 1m 2m 3m |
| IP Class | IP67 |
| Material | PA66（UL 94 V-0） |
| Number of Contacts | 9 Pins |
| Operating Temperature | -40°C to +80°C |
| Rated Current | 1.5 A |
| Contact Resistance | ≤ 30 mΩ |
| Insulation Resistance | ≥ 100 MΩ at DC 500 V |
| Waterproof Gasket | Black Silicone (with 3M 9448 Adhesive) |
| Cable Outer Diameter | 4.5 mm |
| Cable Specification | UL2725, Fully Shielded (Copper Foil + Braided Shield) |
| Category | USB 3.0 |
| Connection Type | Screw-Locking |
| RoHS | Compliant |
| Suggested torque value | 1N·m |
| Connector size | 19.5 |
| Product Number | 1m: CA100-USB-D3AW 2m: CA300-USB-D3AW 3m: CA300-USB-D3AW |
| Drawing | PDF > |

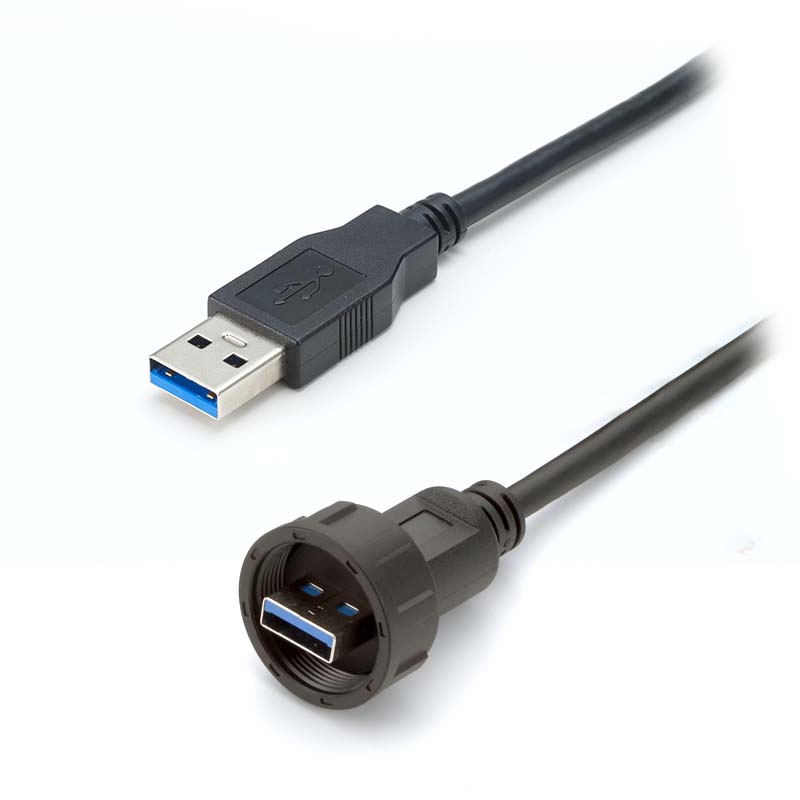

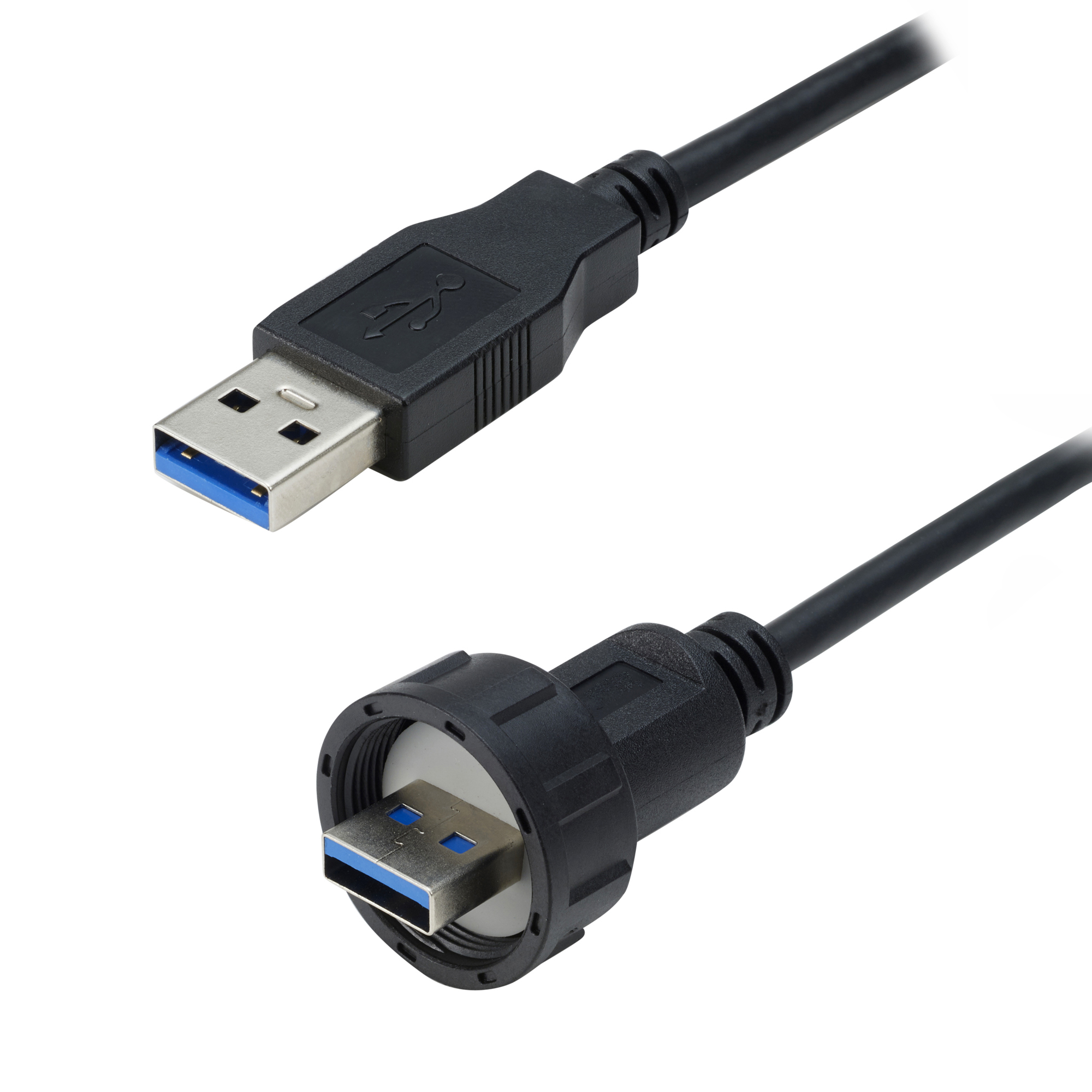

| Gender | Male Waterproof Side: Male |
| Length | 1m 2m 3m |
| IP Class: | IP67 |
| Category | USB 3.0 |
| Number of Contacts | 9 Pins |
| Material | PA66（UL 94 V-0） |
| Operating Temperature | -40°C to +80°C |
| Rated Current | 1.5 A |
| Contact Resistance | ≤ 30 mΩ |
| Insulation Resistance | ≥ 100 MΩ at DC 500 V |
| Cable Specification | UL2725, Fully Shielded (Copper Foil + Braided Shield) |
| Cable Outer Diameter | OD 4.5 mm |
| Connection Type | Screw-Locking |
| Mounting panel thickness | Up to 3 mm |
| RoHS | Compliant |
| Suggested torque value | 1N·m |
| Connector size | 19.5 |
| Product Number | 1m: CA100-USB-D0AW 2m: CA200-USB-D0AW 3m: CA300-USB-D0AW |
Waterproof Connector (Inline Connector)
Panel-mount connector designed to provide a connection between the inside and outside of an enclosure.
| Gender | Female Waterproof Side: Female |
| IP Class | IP67 |
| Connector size | 19.5 |
| Connection Type | Screw-Locking |
| Operating Temperature Range | -40°C to +80°C |
| Mating Durability | ≥ 500 Cycles |
| Contact Resistance | < 30 mΩ |
| Pollution Degree | 3 (Conductive Dust and Condensation Environments) |
| Insulation Resistance | 500 MΩ |
| Material | PA66（UL 94 V-0） |
| Cap | Included |
| Mounting panel thickness | Up to 3 mm |
| RoHS | Compliant |
| Product Number | CN-USB-D2AW |
| Drawing | PDF > / STEP > |
Cable with Connector (For Inline Connection & Internal Wiring)
Connector cable designed to simplify panel mounting and internal wiring.

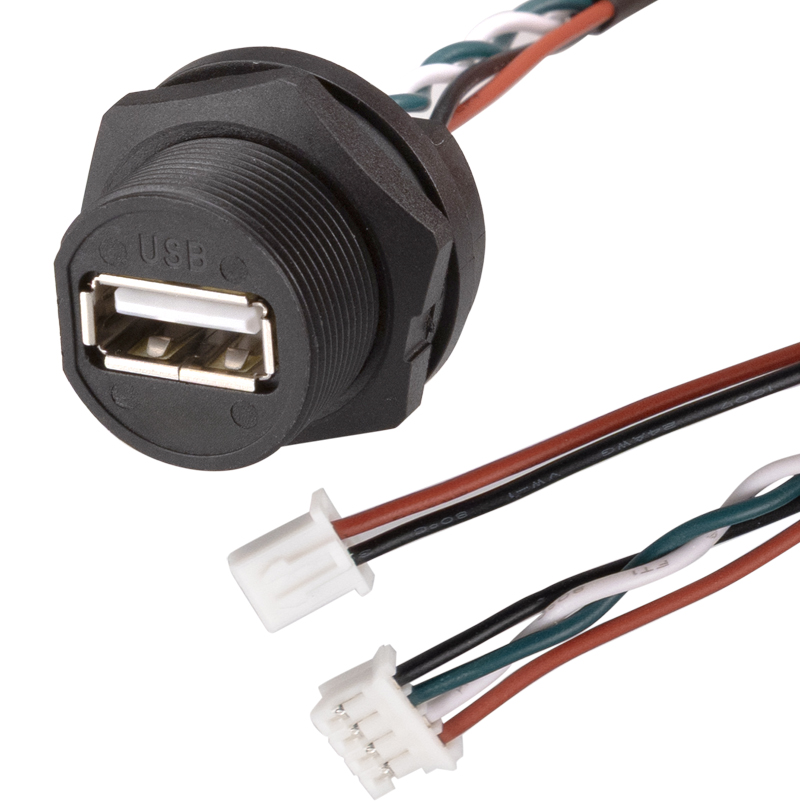

| Gender | USB Type-A (Female) – UL1007 24AWG to PH2.0-4P |
| Cable Length | 130 mm ±5 mm (cable section only) |
| Waterploof Connector | USB Type-A Female |
| Internal Connector | PH2.0-4P |
| USB Version | USB 2.0 |
| Wire Type | UL1007, 24AWG |
| IP Class | IP67 |
| Connection Type | Screw-Locking |
| Mounting panel thickness | Up to 3 mm |
| Product Number | CA195-USB2-PH20-130 |
| Note | Compatible with ELP Board Cameras and Similar Devices |

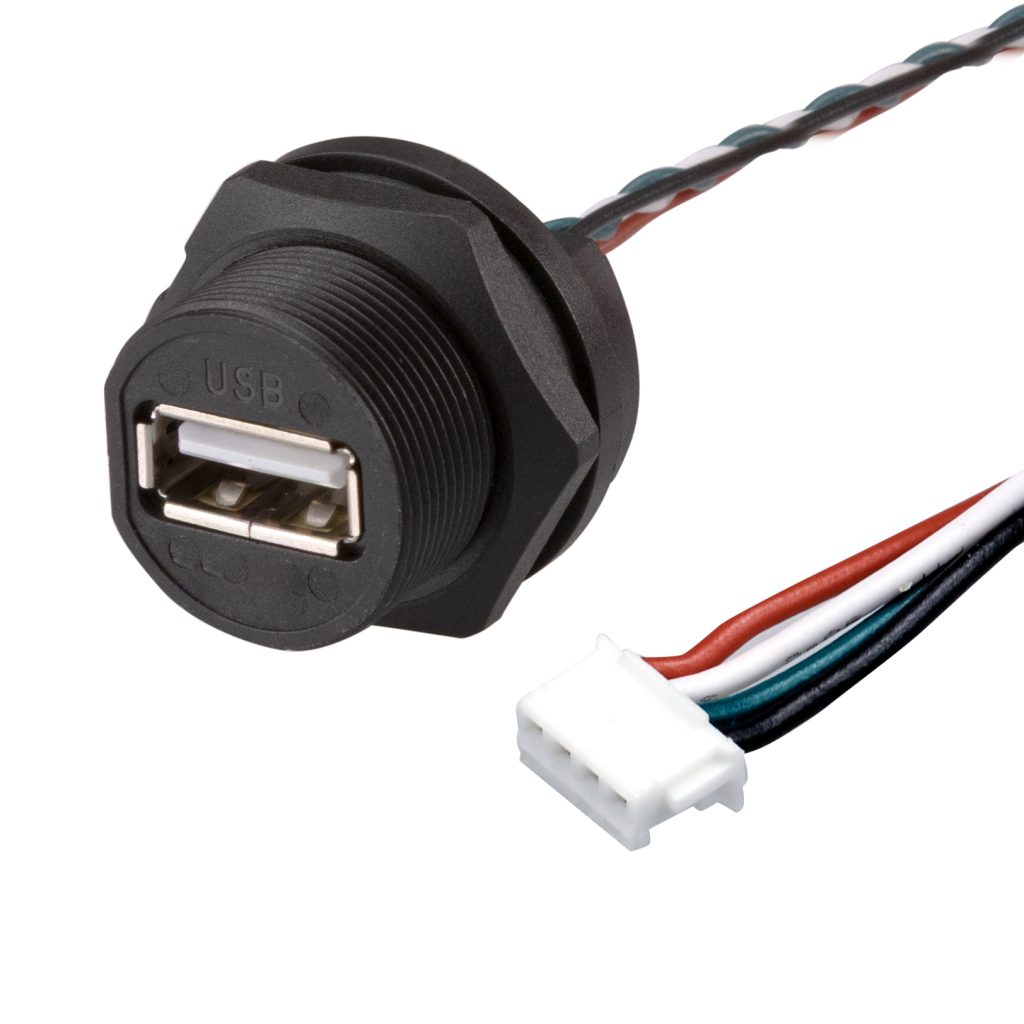

| Gender | USB Type-A (Female) – PH1.5-4P Cable with UL1571 24AWG Wires |
| Cable Length | 130 mm ±5 mm (cable section only) |
| Waterploof Connector | USB Type-A Female (IP67) |
| Internal Connector | PH1.5-4P |
| USB Version | USB 2.0 |
| Wire Type | UL1571, 24AWG |
| IP Class | IP67 |
| Connection Type | Screw-Locking |
| Mounting panel thickness | Up to 3 mm |
| Product Number | CA195-USB2-PH15-130 |
| Note | Compatible with Arducam Board Cameras and Similar Devices |
USB Power Split Cable(For Inline Connection & Internal Wiring)
This is a power splitter cable that allows 5V power to be tapped from a USB connection. It enables additional 5V devices to be powered while maintaining the existing USB connection.
It is suitable for supplying power inside enclosures, small cooling fans, or peripheral devices, helping simplify wiring in space-constrained installations.
Supports Power Distribution
With the USB 5V power splitter cable, power can be supplied to multiple devices.
Power tapping
Device expansion
Flexible system configuration
Key Applications
Power supply inside waterproof enclosures
Raspberry Pi / IoT devices
Surveillance cameras
Outdoor equipment

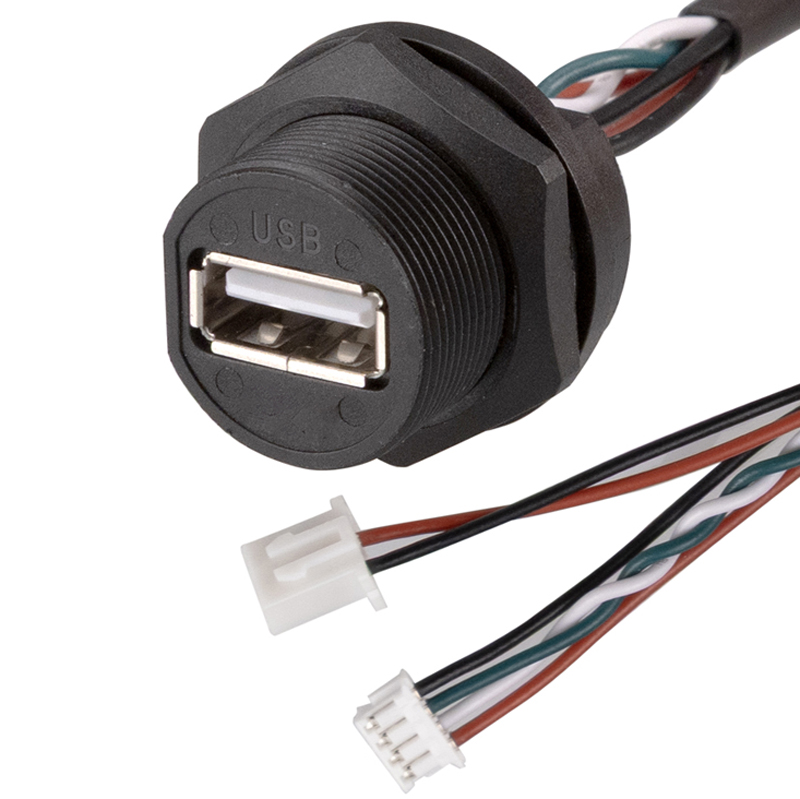

| Gender | USB Type-A (Female) – UL1007 24AWG to PH2.0-4P |
| Cable Length | 130 mm ±5 mm (cable section only) |
| Waterploof Connector | USB Type-A Female |
| Internal Connector 1 | PH2.0-4P |
| Internal Connector 2 | JST XHP-2 |
| USB Version | USB 2.0 |
| Wire Type | UL1007, 24AWG |
| IP Class | IP67 |
| Connection Type | Screw-Locking |
| Mounting panel thickness | Up to 3 mm |
| Product Number | CA195-USB2-PH20-130 |
| Note | Compatible with ELP Board Cameras and Similar Devices |
| Gender | USB Type-A (Female) – PH1.5-4P Cable with UL1571 24AWG Wires |
| Cable Length | 130 mm ±5 mm (cable section only) |
| Waterploof Connector | USB Type-A Female (IP67) |
| Internal Connector 1 | PH1.5-4P (1.5 mm pitch, 4-pin) |
| Internal Connector 2 | JST XHP-2 |
| USB Version | USB 2.0 |
| Wire Type | UL1571, 24AWG |
| IP Class | IP67 |
| Connection Type | Screw-Locking |
| Mounting panel thickness | Up to 3 mm |
| Product Number | CA195-USB2-PH15-130 |
| Note | Compatible with Arducam Board Cameras and Similar Devices |
FAQ
Q. Can it be used with existing USB devices?
A. Yes, it can be connected directly.
Q. What about waterproof performance?
A. The waterproof connector allows the system to maintain its IP rating.
Q. Is power splitting possible?
A. Yes, it can be achieved using a 5V power splitter cable.
Q. Can it be mounted on an enclosure?
A. Yes, it can be used with panel-mount type installations.
The tightening torque for the waterproof connector and cable is set to 1 N·m.
If there is concern about loosening of the fastening parts, please consider using a thread-locking agent suitable for plastics (e.g., LOCTITE 425).
Request a Quote / Contact Us
We offer flexible solutions tailored to your specific applications and requirements, including product customization, custom manufacturing, and quotations based on order quantities.
We welcome a wide range of inquiries, including hole drilling and additional machining of enclosures, custom cable lengths and connector configurations, equipment integration, and installation solutions.
From prototyping and R&D to mass production and equipment deployment, feel free to contact us even if your specifications have not yet been finalized.
