Waterproof acrylic dome cover
IP68 Waterproof Acrylic Dome Cover for Clear and Reliable Optical Access
Reliable Performance in Water or Outdoors
Perfect for Waterproof and Observation Devices
The “Waterproof Acrylic Dome Cover (IP68-rated)” is a dome-shaped cover made of acrylic, equipped with an O-ring for secure sealing.
By integrating it into a waterproof housing, it can be used as a “windowed enclosure” that allows visibility of internal components from the outside—achieving both clarity and reliable waterproofing.
Acrylic dome cover with O-ring attached to the bottom. (Patent pending)
By drilling a hole in a waterproof case and attaching it to the waterproof case, it can be made into a waterproof camera case.
This is useful for all-sky cameras installed outdoors or when you want to check the monitor status of the equipment.
Flange Cover
Cap-Type Flange Cover for Enhanced Sealing and Alignment
The flange cover features a cap-style design that securely fits over the O-ring and acrylic dome cover, holding them firmly in place.
This construction prevents misalignment of components and provides additional support to improve sealing performance and durability.
Waterproof Performance Compliant with IP68 Standard
About the Waterproof Performance Test

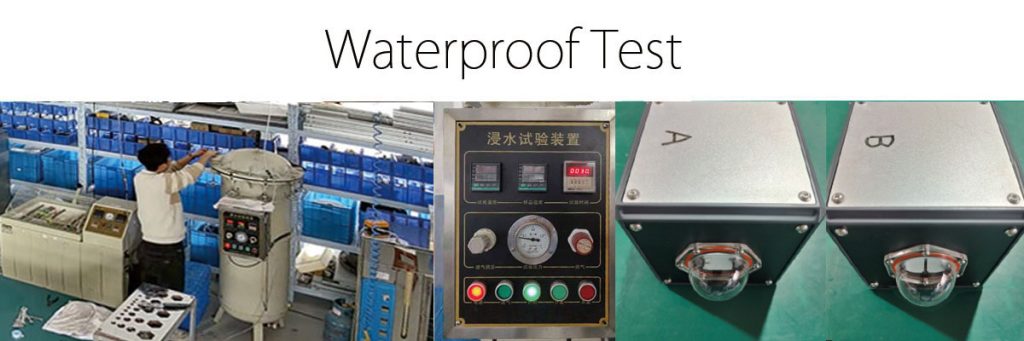

The product has successfully passed a waterproof pressure test, withstanding 3 atmospheres (0.3 MPa) for 30 minutes, confirming its IP68-compliant waterproof performance.
Waterproof Test Report >
Dome Type / Flat Type — Application-Based Selection
A flat type waterproof cover can be used to make the case with a window to check the monitor of the instrument placed inside the case.
Size : φ60mm
Dome Height : 52mm
Dome Height : 35mm
Dome Height : Flat
Size : φ45.5mm
Dome Height : 27mm
Dome Height : Flat
Specifications
| Outer diameter 60mm | Outer diameter 45.5mm |
| Dome Height 52mm:ODC60-H52 Dome Height 30mm : ODC60-H35 Flat : ODC60-H0 *Due to the manufacturing method, the height of the dome may vary ±6mm. | Dome Height 27mm: ODC45-H27 Flat : ODC45-H0 *Due to the manufacturing method, the height of the dome may vary ±6mm. |
| Plate Color: Matt Clear | Plate Color: Matt Clear |
| Drawing PFD STEP Dome Height 52mm Dome Height 35mm Flat DXF(Hole Positions） | Drawing PDF STEP Dome Height 27mm Flat DXF(Hole Positions） |
Click on the drawing to enlarge.
How to assemble
Prepare cases with holes drilled for dome mounting.
Please check if the O-ring is not displaced.
If the O-ring is misaligned, the waterproof performance will not be maintained.
Click on the assembly diagram to enlarge.
Fully fluorinated grease can be applied to O-rings for better airtightness.
More >
Contact Us
About Quantity Discounts
We offer a quantity discount service for corporate customers. If you are considering purchasing in large quantities, please contact us in advance using the inquiry form below. Please note that the discount varies depending on the type of product, selling price, quantity, and time of purchase. We can also handle custom products, so please feel free to contact us.
