Waterproof Acrylic Dome (IP68 rated)

Add a “viewing window” to pull boxes and waterproof enclosures

Ideal for waterproof cases and monitoring equipment.

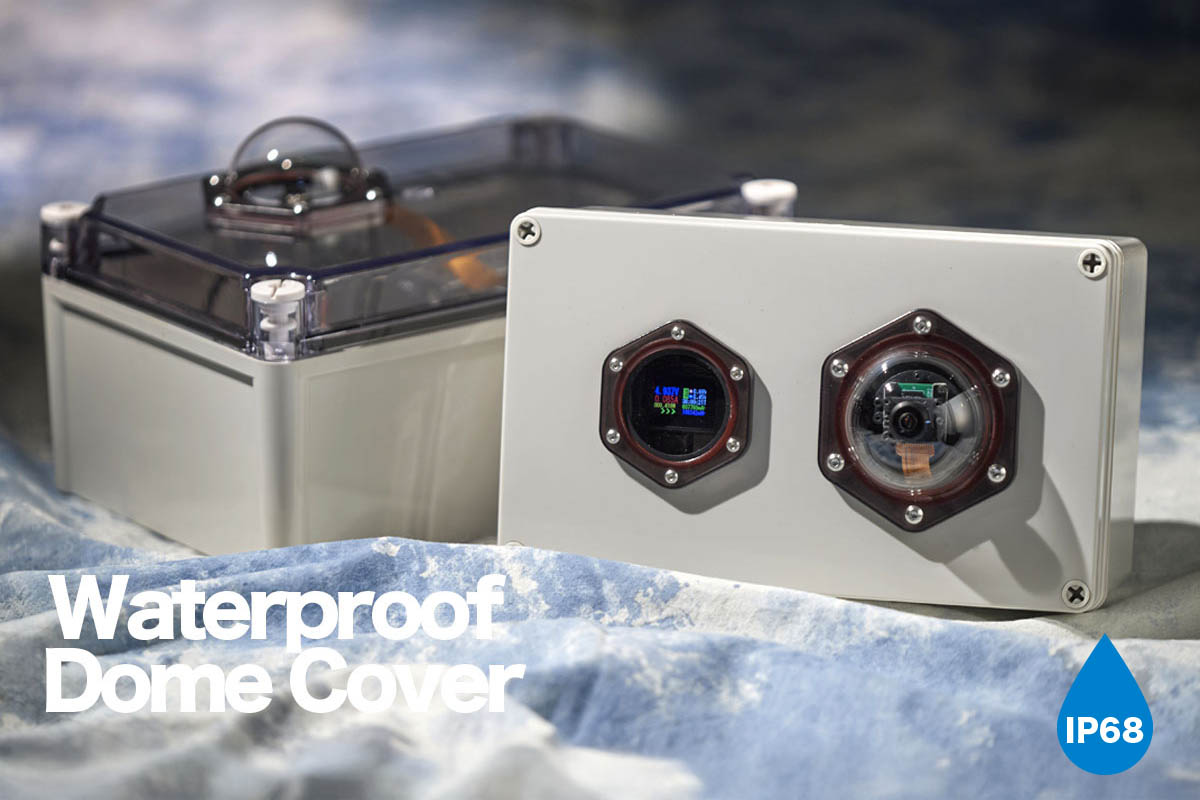

The “Waterproof Acrylic Dome Cover (IP68 Rated)” is an acrylic dome cover equipped with an O-ring.
By installing it onto a waterproof enclosure, you can create a “windowed case” that allows internal visibility from the outside—achieving both clear visibility and reliable sealing.

IP68-Rated Waterproof Protection

About the Waterproof Performance Test

The product has successfully passed a waterproof pressure test, withstanding 3 atmospheres (0.3 MPa) for 30 minutes, confirming its IP68-compliant waterproof performance.
Waterproof Test Report >

Key Applications

Viewing window for pull boxes
Monitoring the internal condition of waterproof enclosures
Checking equipment indicators
Visual inspection of outdoor equipment

Dome vs. Flat Window

Dome TypeFlat Type
High visibility
Less prone to water droplets
Wide field of view
Suitable for basic inspection
Space-saving design
Water droplets may accumulate more easily

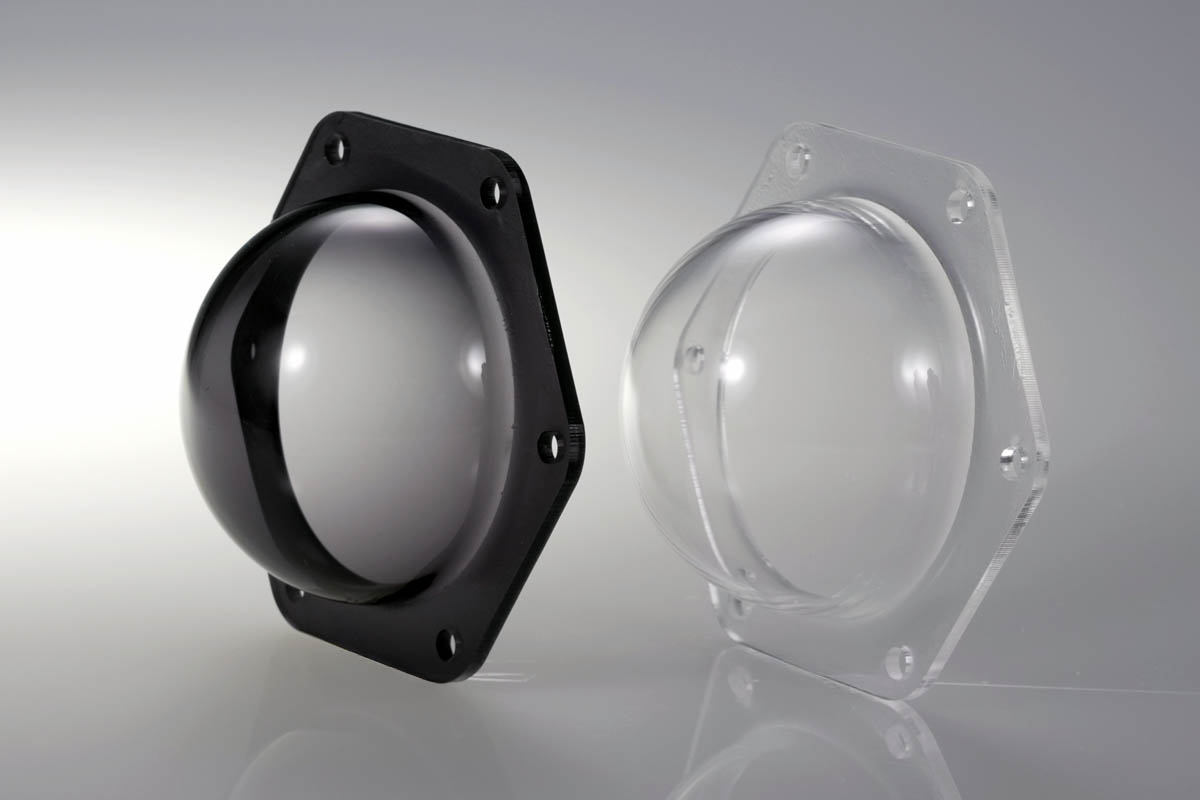

Tinted Type

The tinted type makes the camera and other equipment inside the housing less visible, helping to reduce their visual presence.
It is ideal for applications where aesthetics and discreet camera installation are important.

Available Sizes

Size : φ60mm

Dome Height : 52mm

Dome Height : 35mm

Dome Height : Flat

Size : φ45.5mm

Dome Height : 27mm

Dome Height : Flat

Specifications

Outer diameter 60mmOuter diameter 45.5mm
Dome Height 52mm:ODC60-H52
Dome Height 52mm:ODCS60-H52 (Smoked)
Dome Height 30mm : ODC60-H35
Dome Height 30mm : ODCS60-H35 (Smoked)
Flat : ODC60-H0
*Due to the manufacturing method, the height of the dome may vary ±6mm.
Dome Height 27mm: ODC45-H27
Dome Height 27mm: ODCS45-H27 (Smoked)
Flat : ODC45-H0

*Due to the manufacturing method, the height of the dome may vary ±6mm.
Plate Color: Matt ClearPlate Color: Matt Clear
Drawing PFD
STEP
Dome Height 52mm
Dome Height 35mm
Flat
DXF(Hole Positions)
Drawing PDF
STEP
Dome Height 27mm
Flat
DXF(Hole Positions)
Acrylic Light Transmission Properties
UV: Approximately 99.2% blocked
Infrared (IR): Approximately 92.1% transmitted
Visible Light: Approximately 92.4% transmitted
Acrylic Light Transmission Properties
UV: Approximately 99.2% blocked
Infrared (IR): Approximately 92.1% transmitted
Visible Light: Approximately 92.4% transmitted

Click on the drawing to enlarge.

FAQ

Q. Is it only for camera applications?
A. No, it can also be used as a waterproof viewing window for internal inspection.

Q. What types of enclosures can it be used with?
A. It can be installed on pull boxes, waterproof cases, and similar enclosures.

Q. What level of waterproof performance does it offer?
A. It provides IP68-equivalent waterproof performance.

Q. Is customization or modification possible?
A. Yes, customization is available depending on your application.

How to assemble

Prepare cases with holes drilled for dome mounting.

Please check if the O-ring is not displaced.
If the O-ring is misaligned, the waterproof performance will not be maintained.

Click on the assembly diagram to enlarge.

Fully fluorinated grease can be applied to O-rings for better airtightness.
More >

Request a Quote / Contact Us

We offer flexible solutions tailored to your specific applications and requirements, including product customization, custom manufacturing, and quotations based on order quantities.

We welcome a wide range of inquiries, including hole drilling and additional machining of enclosures, custom cable lengths and connector configurations, equipment integration, and installation solutions.

From prototyping and R&D to mass production and equipment deployment, feel free to contact us even if your specifications have not yet been finalized.
