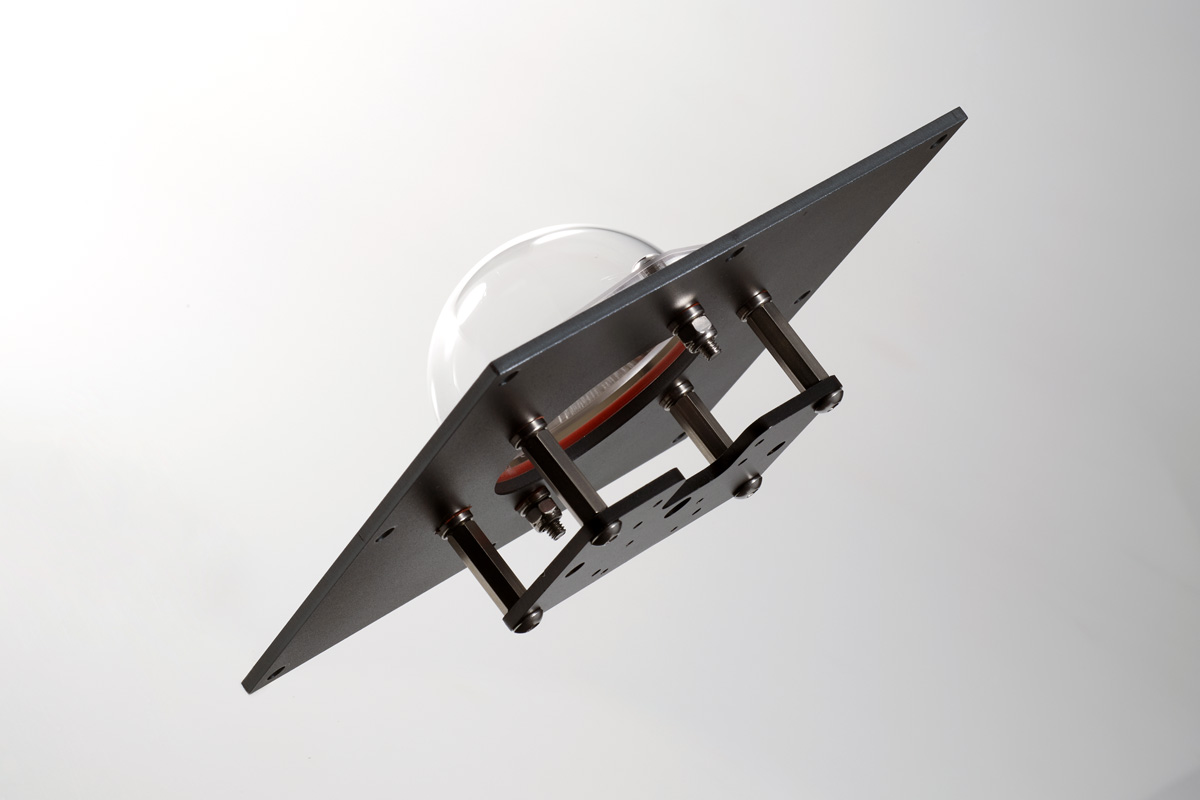

Dome Panel
Panel with dome for convenient camera installation
This panel has a dome panel that is useful when you want to install a camera inside a cube case.
The height of the dome can be selected according to the shape of the camera and the size of the lens.
In addition to the dome shape, a flat window type panel is also available for easy viewing of the equipment.
Size:φ60 mm
Dome Height 50mm ※Panel 125
Dome Height 35mm（Standard）※Panel 125
Flat ※Panel 125
Size : φ45mm
Dome Height 27mm ※Panel 125
Dome Height 17mm ※Panel 125
Flat ※Panel 125
How to assemble
Please check if the O-ring is not displaced.
If the O-ring is misaligned, the waterproof performance will not be maintained.
The drawing may differ from the product.
