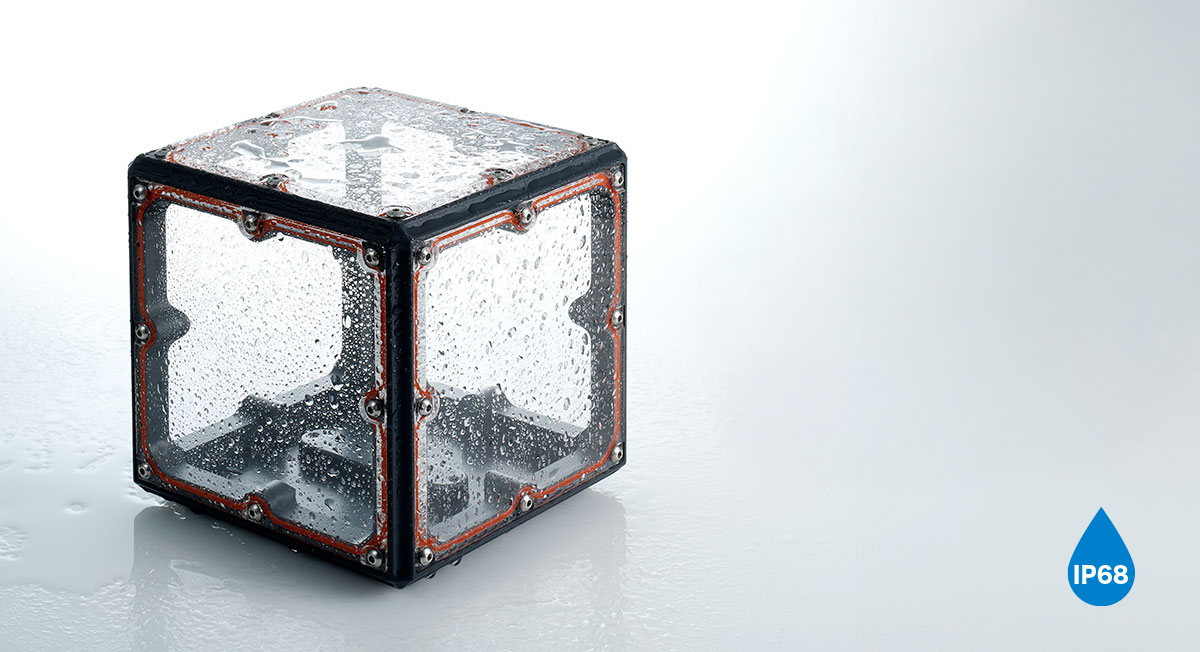

Waterproof Cube Case Enclosures (IP68)
Dustproof and Waterproof Cube Enclosure (125 mm / 150 mm)
with Replaceable Panels
Ideal for Cameras and Electronic Devices
This is a cube-shaped waterproof enclosure for cameras, engineered with IP68-rated dust and water resistance.
The enclosure offers exceptional durability to protect internal components from water, dust, and harsh environmental conditions—making it ideal for underwater applications or use in challenging outdoor environments.
A key feature is its modular design with interchangeable panels, allowing flexible customization to suit various operational needs. It is compatible with a wide range of action cameras and compact industrial cameras.
Seamless One-Piece Frame for Superior Waterproof Performance
The waterproof cube enclosure features a seamless one-piece frame structure that delivers outstanding waterproof performance compliant with IP68 standards.
The frame is manufactured using high-precision die-casting technology, providing excellent sealing capability that effectively blocks the ingress of water and dust—even in high-pressure or extreme environments.
High-Sealing Structure with O-Rings Prevents Water Ingress at Panel Joints
In the waterproof cube enclosure, O-rings installed at each panel junction play a vital role in maintaining the unit’s high waterproof performance.
These O-rings ensure a tight, long-lasting seal, effectively preventing water intrusion even under high pressure or high-humidity conditions.
All Six Panels Are Removable and Interchangeable
The cube enclosure features a modular design in which all six panels—top, bottom, front, back, left, and right—can be easily removed and replaced using standard tools.
This design allows for flexible customization based on your application requirements:
・Reconfigure panel layout per site or purpose, enabling use across a wide range of deployment scenarios.
Bottom Panel with Standard Mounting Threads
The bottom panel of the waterproof cube enclosure is equipped with standard tripod mounting threads—1/4″-20 and 3/8″-16, widely used in photography and videography equipment.
This feature allows for secure attachment to tripods, camera rigs, arms, and other mounting accessories, making it highly adaptable for both field and underwater installations.
Features
Waterproof performance in accordance with IP68
IP68 Waterproof Performance Verified in 3-Atmosphere (30m Depth) Pressure Test
Entaniya’s waterproof cube enclosure underwent a hydrostatic pressure test equivalent to 3 atmospheres (approx. 30 meters underwater) and was confirmed to have no water ingress during the test.
※ Test configuration: aluminum bottom panel and five 6 mm-thick acrylic panels.
Waterproof Test Report >
*At 5 atmospheres, the acrylic panel cracked, but there was no water ingress into the interior.
*The waterproof property of this product is effective only when the product is securely sealed.
*When using connectors, etc., it depends on the waterproof performance of the connectors.
Salt spray testing was used to evaluate accelerated atmospheric exposure corrosion.
There was no swelling, corrosion, or peeling to the painted surface during the 48-hour and 100-hour tests.
Salt Spray Test Report >
Size & Material
Three Frame Sizes Available — Choose According to Your Application
The waterproof cube enclosure is available in three frame sizes to suit a wide range of equipment and installation needs:
150 × 150 × 150 mm: Ideal for large devices and multi-sensor configurations.
125 × 125 × 125 mm: Well-suited for general-purpose cameras and measurement devices.
100 × 100 × 100 mm (Titanium): A special corrosion-resistant model designed for underwater or marine observation applications. (Custom order only)
The titanium-frame version offers exceptional resistance to saltwater and corrosion, making it highly reliable even in long-term deployments in harsh oceanic environments.Custom design and manufacturing services are available upon request to accommodate specific equipment requirements or environmental conditions.
Specifications
| Product Name | Waterproof Cube Case 150 | Waterproof Cube Case125 |
| Size | External 150 x 150 x 150mm Inside 125 x 125 x 125mm | External 125 x 125 x 125mm Inside 95 x 95 x 95mm |
| Waterproof performance | IP68 compliant | IP68 compliant |
| Ppanel | 5 x Acrylic panel 1 x Bottom panel | 5 x Acrylic panel 1 x Bottom panel |
| Product Number | CC-WP-150 | CC-WP-125 |
Custom Panels

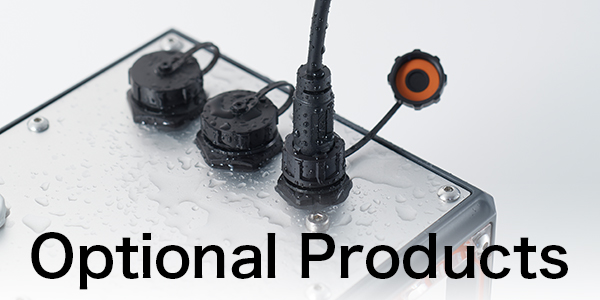

Optional Products
Waterproof connectors and cables
Connectors and cables to be attached to panel for waterproof connector. IP67.
Short cables
Short cables for convenient cable routing inside the cube case.
Fall prevention wire
Prevents installations from falling, damaging, or causing accidents.
How to install the WP wire >

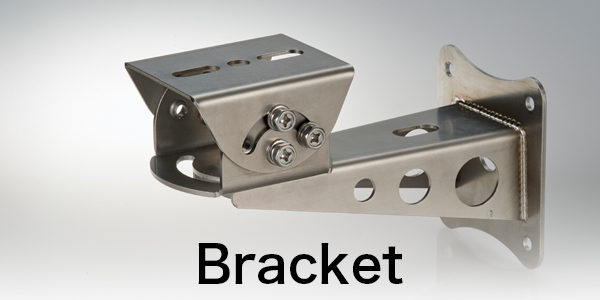

Mounting Bracket
This mounting bracket is designed for securely installing the Cube Case onto various surfaces such as poles, walls, or custom rigs.

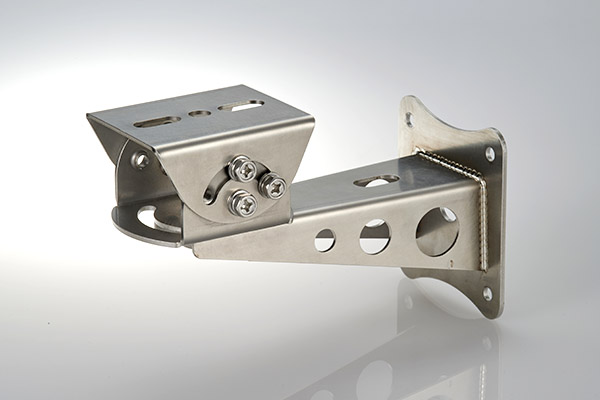

2-Axis Mounting Bracket
A 2-axis mounting bracket for installing the Cube Case.
Both vertical (up-down) and horizontal (left-right) angles can be adjusted.
Fully fluorinated grease
Applying this grease to O-rings of waterproof dome covers and waterproof camera cases enhances the performance of O-rings and extends their service life.
Contact Us
About Quantity Discounts
We offer a quantity discount service for corporate customers. If you are considering purchasing in large quantities, please contact us in advance using the inquiry form below. Please note that the discount varies depending on the type of product, selling price, quantity, and time of purchase.
*This product was developed based on a concept by REC-DESIGN.
