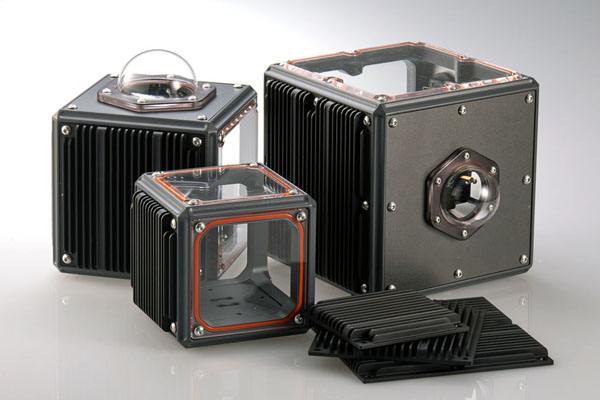

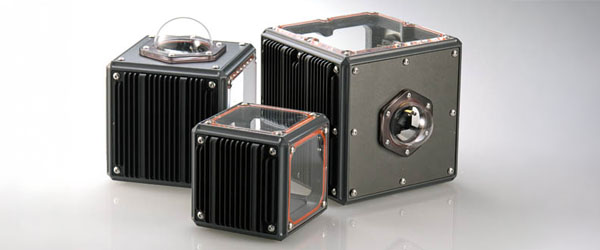

IP68 Waterproof Cube Case Enclosures
This cube-shaped waterproof case (Enclosures) conforms to IP68.
This case features a high degree of customizability, allowing the user to change the specifications to suit the application by replacing the panels.
Seamless frame
One of the reasons for its high waterproof performance is its seamless one-piece frame. It is manufactured by die-cast molding.
O-ring
O-rings under each panel prevent water from seeping through the panel.

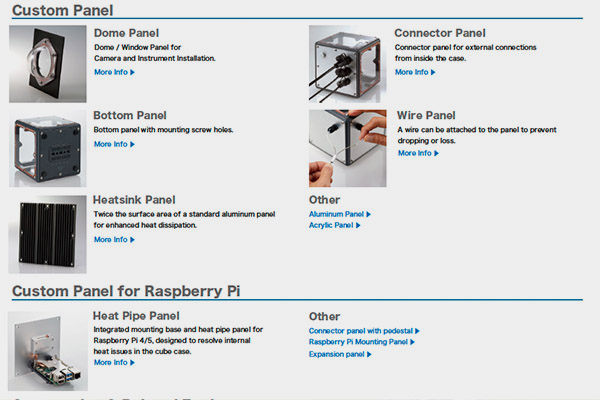

Removable and replaceable panels
All six panels can be removed and replaced.
You can customize the panels to suit your application or replace only the damaged panels.
Bottom panel with screw holes
The panel used on the bottom has standard screw holes (1/4″-20, 3/8″-16) for tripods and other imaging equipment.
Cube Case Features
Waterproof performance in accordance with IP68
As a result of a water pressure test at 3 atmospheres, there was no internal flooding and IP68-compliant water resistance was confirmed, allowing the product to be used even when completely submerged in water.
*Test results for bottom panel (aluminum) and five 6mm acrylic panels.
Waterproof Test Report >
*At 5 atmospheres, the acrylic panel cracked, but there was no water ingress into the interior.
*The waterproof property of this product is effective only when the product is securely sealed.
*When using connectors, etc., it depends on the waterproof performance of the connectors.
Salt spray testing was used to evaluate accelerated atmospheric exposure corrosion.
There was no swelling, corrosion, or peeling to the painted surface during the 48-hour and 100-hour tests.
Salt Spray Test Report >
Enclosures Size & Material
Frames are available in two sizes: 150 x 150 x 150 mm and 125 x 125 x 125 mm.

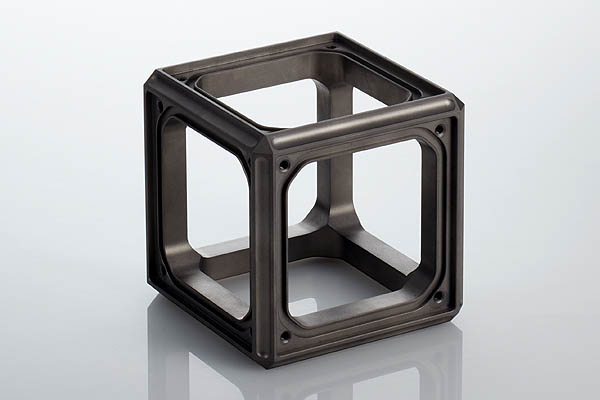

Corrosion resistant titanium frames (100 x 100 x 100mm) suitable for use in marine systems are also available (on request)
Specifications
| Product Name | Waterproof Cube Case 150 | Waterproof Cube Case125 |
| Product Number | CC150 | CC125 |
| Size | External 150 x 150 x 150mm Inside 125 x 125 x 125mm | External 125 x 125 x 125mm Inside 95 x 95 x 95mm |
| Waterproof performance | IP68 compliant | IP68 compliant |
| Ppanel | 5 x Acrylic panel 1 x Bottom panel | 5 x Acrylic panel 1 x Bottom panel |
The composition of the cube case will vary depending on the parts used and other factors.
Please fill in and submit the following Quote Request Form.
Optional Items

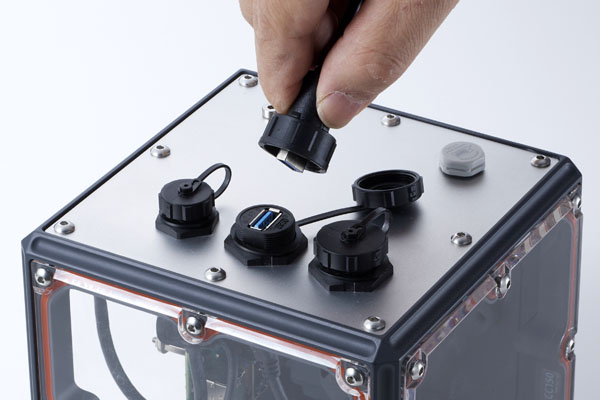

Waterproof connectors and cables
Connectors and cables to be attached to panel for waterproof connector. IP67.
Short cables
Short cables for convenient cable routing inside the cube case.
Fall prevention wire
Prevents installations from falling, damaging, or causing accidents.
How to install the WP wire >
Fully fluorinated grease
Applying this grease to O-rings of waterproof dome covers and waterproof camera cases enhances the performance of O-rings and extends their service life.
If you have any questions about our products, please contact us using the inquiry form below.
*This product was developed based on a concept by REC-DESIGN.
