Waterproof RJ45 Ethernet cable / connector
Supports remote monitoring, continuous communication, and outdoor use
Waterproof Cable (For External Wiring)
| Gender | Male Waterproof Side: Male |
| Length | 1m 2m 3m |
| IP Class | IP67 |
| Material | PA66（UL 94 V-0） |
| Category | CAT6A STP |
| Cable Shielding | Aluminum Foil + Braided Shield (B128) |
| Cable Outer Diameter | OD 6.5 mm |
| Compliance Standard | TIA/EIA-568B |
| Operating Temperature Range | -30°C to +105°C |
| Connection Type | Screw-Locking |
| RoHS | Compliant |
| Suggested torque value | 1N·m |
| Product Number | 1m: CA100-LAN-A0AW 2m: CA200-LAN-A0AW 3m: CA300-LAN-A0AW |
| Drawing | PDF > |
Waterproof Connector (Inline Connector)
| Type | Straight connector |
| Gender | Female Waterproof Side: Female |
| IP Class | IP67 (When Mated) |
| Connector size | 19.5 |
| Material | PA66（UL 94 V-0） |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 500 MΩ (DC 500 V) |
| Salt Spray Test | 48 Hours |
| PoE Support | 60 W / 2 A |
| Operating Temperature Range | -30°C to +105°C |
| Cap | Included |
| Connection Type | Screw-Locking |
| Maximum Panel Thickness | 3 mm |
| RoHS | Compliant |
| Product Number | CN-LAN-A2AW |
| Drawing | PDF > / STEP > |

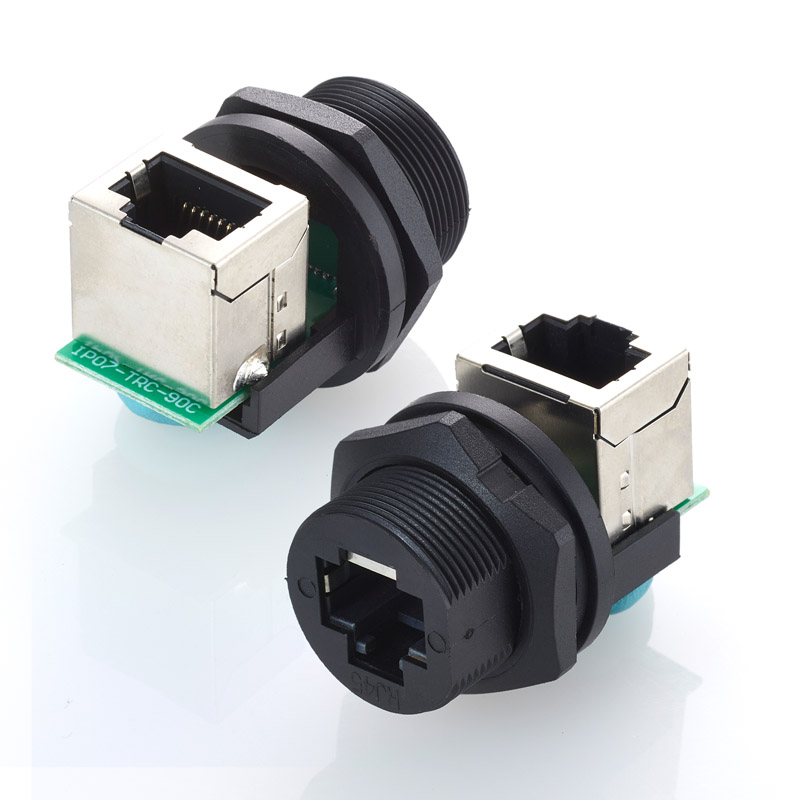

| Type | Right-angle connecto |
| Gender | Female Waterproof Side: Female |
| IP Class | IP67 (When Mated) |
| Connector size | 19.5 |
| Material | PA66（UL 94 V-0） |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 500 MΩ (DC 500 V) |
| Salt Spray Test | 48 Hours |
| PoE Support | 60 W / 2 A |
| Operating Temperature Range | -30°C to +105°C |
| Cap | Included |
| Connection Type | Screw-Locking |
| Maximum Panel Thickness | 3 mm |
| RoHS | Compliant |
| Product Number | CN-LAN-A2AV |
| Drawing | STEP > |

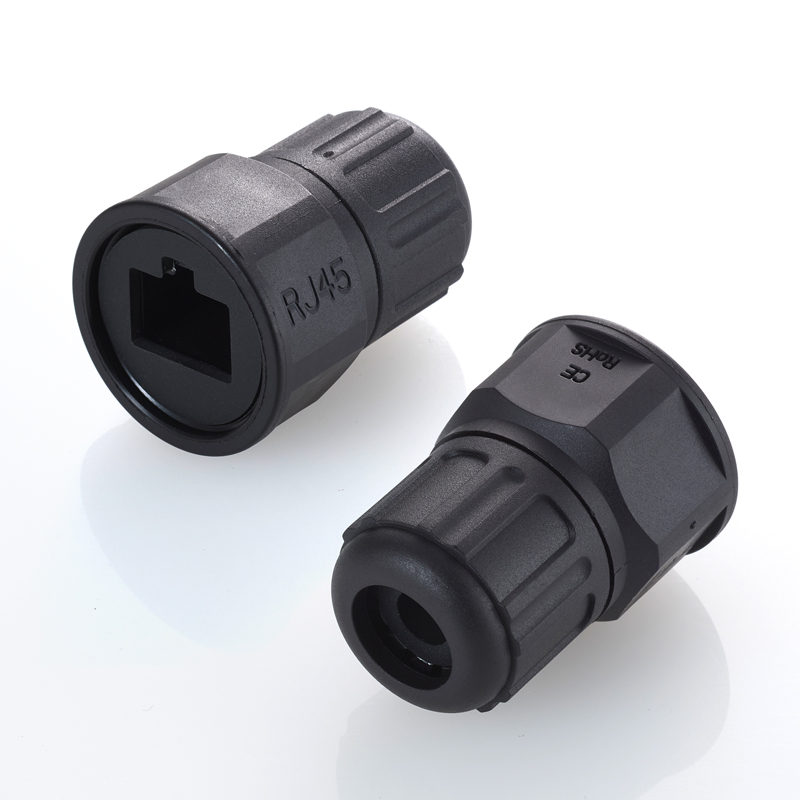

Cable Gland (Inline Connector)
| IP Class | IP67 |
| Product Number | CG-LAN-S |
| Note | Cable gland to allow RJ45 cable to be processed and connected to the above waterproof connector. |
Cables with Connectors (For Inline Connection & Internal Wiring)
| Gender: | Waterproof Connector Side: Female Internal Side: Male |
| Cable Length | 300 mm ±5 mm (cable section only) |
| Connector Size | 19.5 |
| Connector Type | RJ45 (Female) RJ45 (Male) |
| Category | Cat 5E Cat 6A |
| Power over Ethernet | PoE+ compatible |
| Connection Type | Screw-Locking |
| Maximum Panel Thickness | 3 mm |
| RoHS | Compliant |
| IP Class | IP67(When Mated) |
| Product Number | CAT 5E 30cm：CA195-RJ45-RJ45-FM-300-CT5 CAT 6A 30cm：CA195-RJ45-RJ45-FM-300-CT6 |

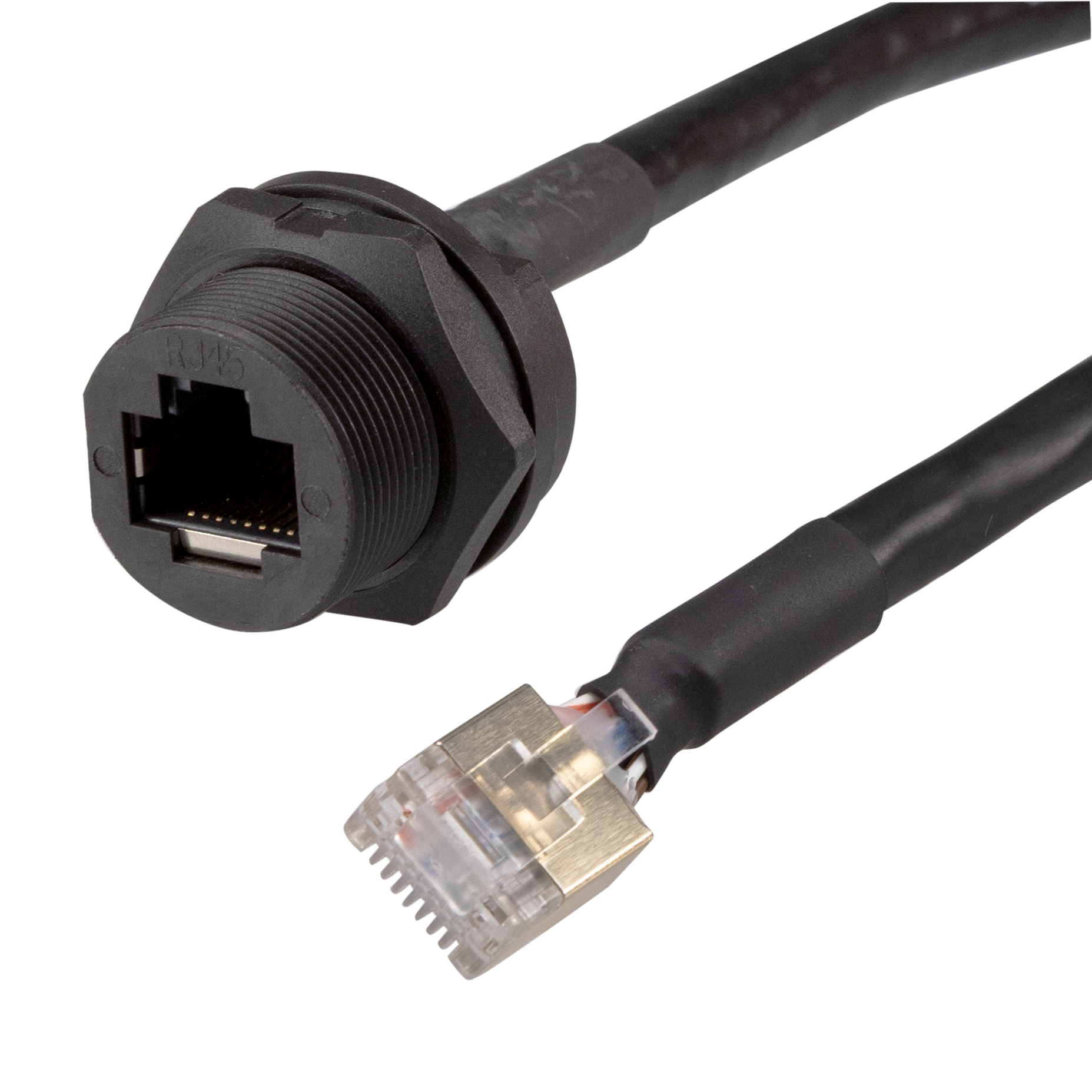

| Gender: | Waterproof Connector Side: Female Internal Side: Male |
| Cable Length | 200 mm ± 5 mm (cable section only) |
| Connector Size | 19.5 |
| Connector Type | RJ45 (Female) RJ45 (Male) |
| Category | Cat 6A |
| Power over Ethernet | PoE+ compatible |
| IP Class | IP67(When Mated) |
| Connection Type | Screw-Locking |
| Maximum Panel Thickness | 3 mm |
| Product Number | CAT 6A 20cm：CA195-RJ45-RJ45-FM-200-CT6 |
| Note | Special specification with enhanced flexibility of the plug section. A shorter plug than the standard type is also used, making wiring easier in confined spaces. |

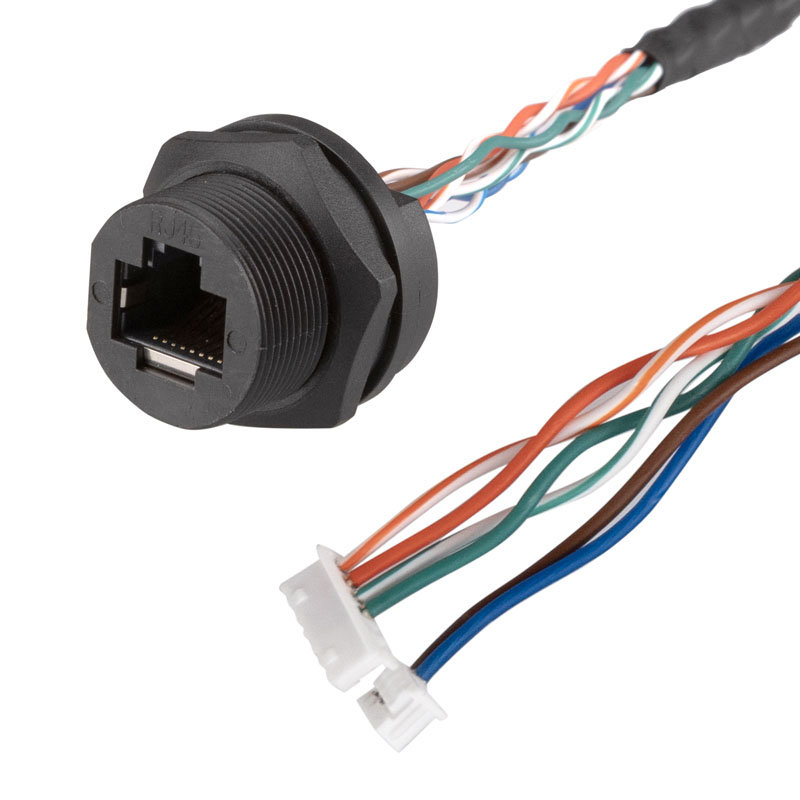

| Gender: | Waterproof Connector Side: Female Internal Side: Plug |
| Cable Length | 130 mm ± 5 mm (cable section only) |
| Connector Size | 19.5 |
| Connector Type | RJ45 (Female) Plug (Male) |
| Category | Cat 6A |
| Power over Ethernet | PoE+ compatible |
| IP Class | IP67(When Mated) |
| Connection Type | Screw-Locking |
| Maximum Panel Thickness | 3 mm |
| Product Number | CA195-RJ45-PC-FF-130-CT6 |
| Note | Verified Camera Compatibility SIP-K568D5 SIP-K676K5 with SDaPo PoE Board (Verified with cameras from SMTSEC website >) |
FAQ
Q. What level of waterproof performance does it offer?
A. The IP rating is maintained at the connector interface.
Q. Can it be used outdoors?
A. Yes, it is suitable for outdoor and industrial applications.
Q. Can it be extended?
A. Yes, extension is possible using a coupler (intermediate connector).
Q. Is PoE supported?
A. It can be supported depending on the configuration (please consult us).
The tightening torque for the waterproof connector and cable is set to 1 N·m.
If there is concern about loosening of the fastening parts, please consider using a thread-locking agent suitable for plastics (e.g., LOCTITE 425).
