CSI-HDMI conversion module

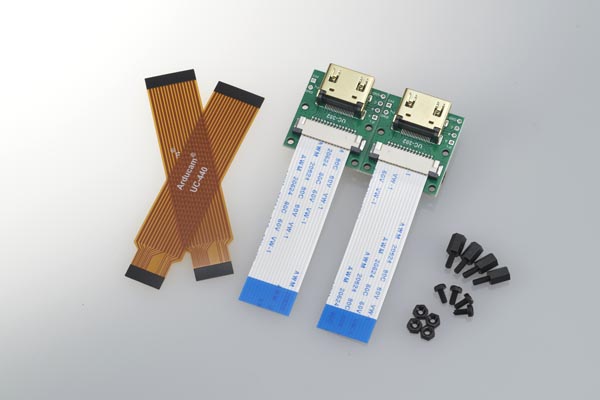

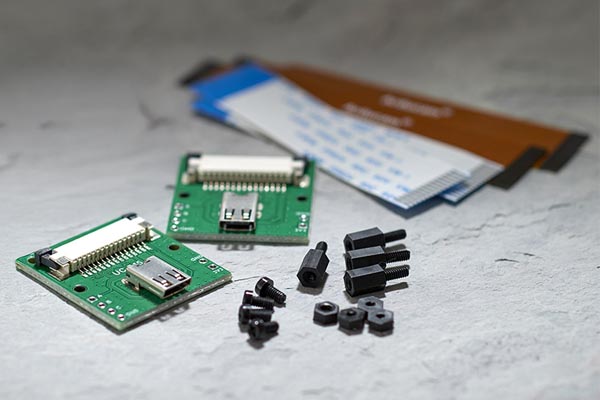

This is a CSI-HDMI conversion module designed for Raspberry Pi camera modules (made by Arducam).

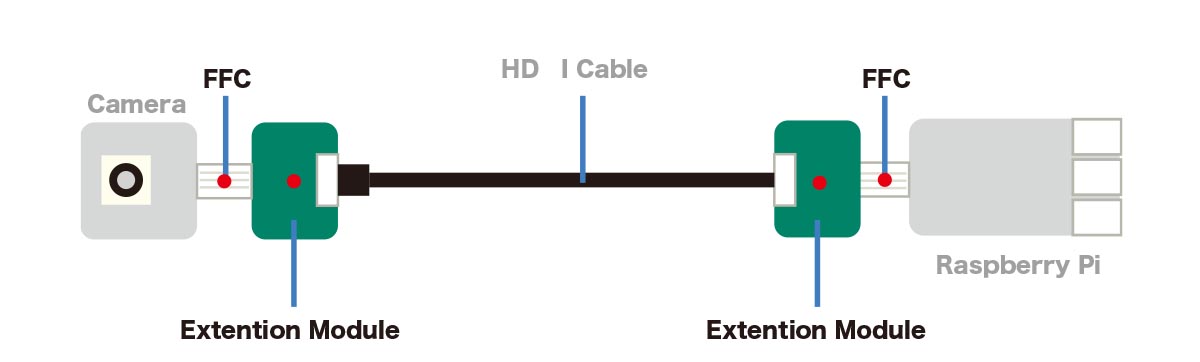

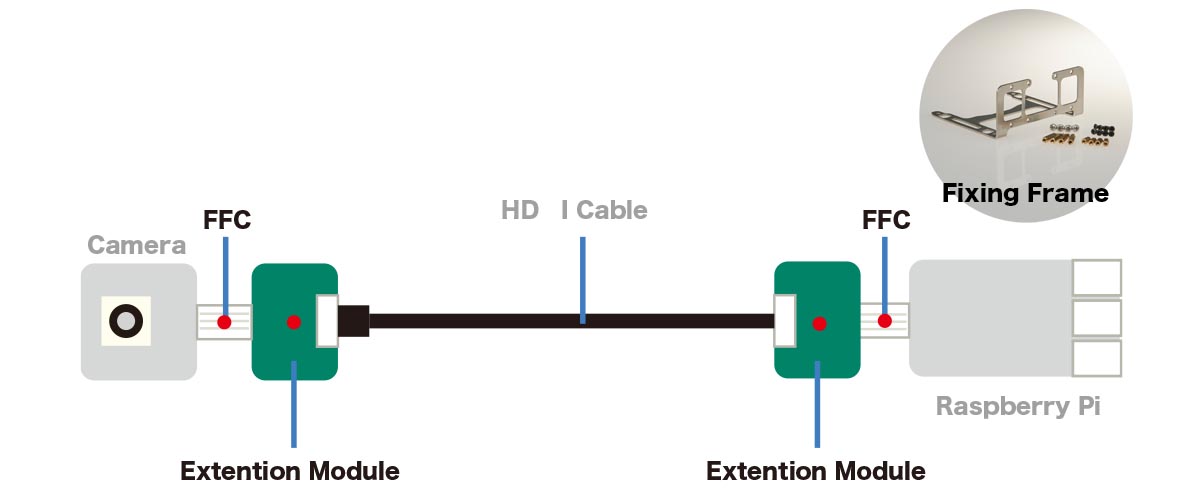

It converts the camera connection from FFC to HDMI cable and can extend the cable up to about 2 meters.
Cable can be extended up to about 2 meters
| Conversion Module | Arducam CSI-HDMI Conversion Module |
| Camera Plate | Entaniya Camera Mount Plate |
| HDMI Cable | Entaniya HDMI Cable 1.5m |

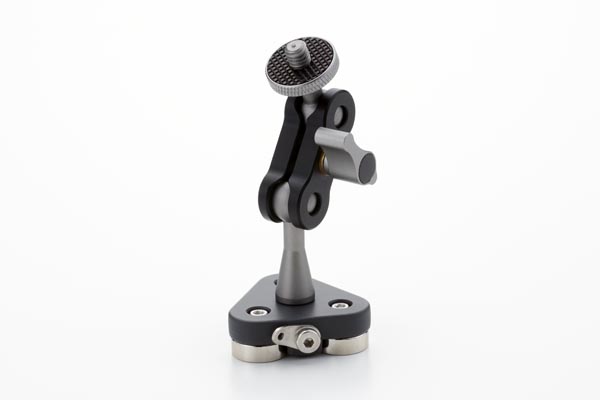

| Stand | Magic Arm with Magnet Plate |
| Raspberry Pi Case | Dual Fan Case for Raspberry Pi 4 for Raspberry Pi 5 |
Headphone jack
Type A conversion modules come with a microphone and headphone jack for audio or GPIO signals. It can be used to extend standard audio signals, GPIO signals, or other sensor signals.

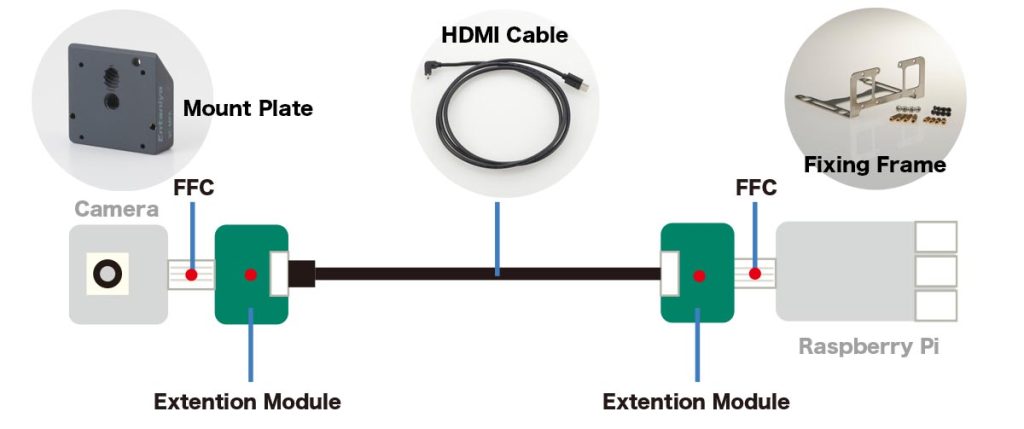

Frame for fixing HDMI conversion module

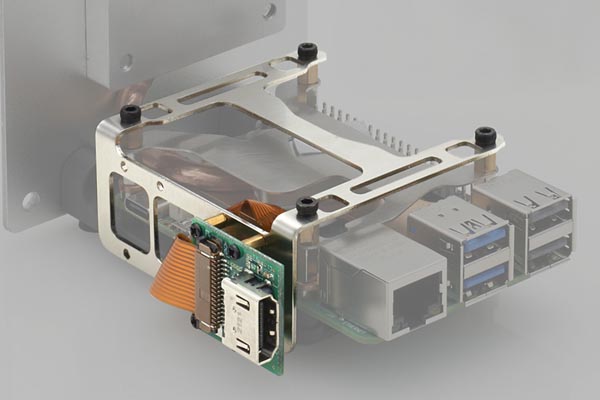

This is a frame for fixing the HDMI module on the Raspberry Pi main unit side to the main unit.
Can be used with heat pipes for Raspberry Pi.
Can be used with aluminum case for Raspberry Pi.
If you want to use two cameras with Raspberry Pi 5 for HDMI connection, you can also stack and install HDMI conversion modules.
Example of using CSI-HDMI Kit
| Cameras | Raspberry Pi V2 / V3 / HQ / VR220 > |
| HDMIケーブル | HDMI Type A-L Shape micro Cable 1.5m【C027】> |
| CSI-HDMI Kit | CSI-HDMI Kit |
| Heatpipe | for Raspberry Pi 5 > |
| Camera Stand | Magnet Plate S + Magic Arm【G025】 > |

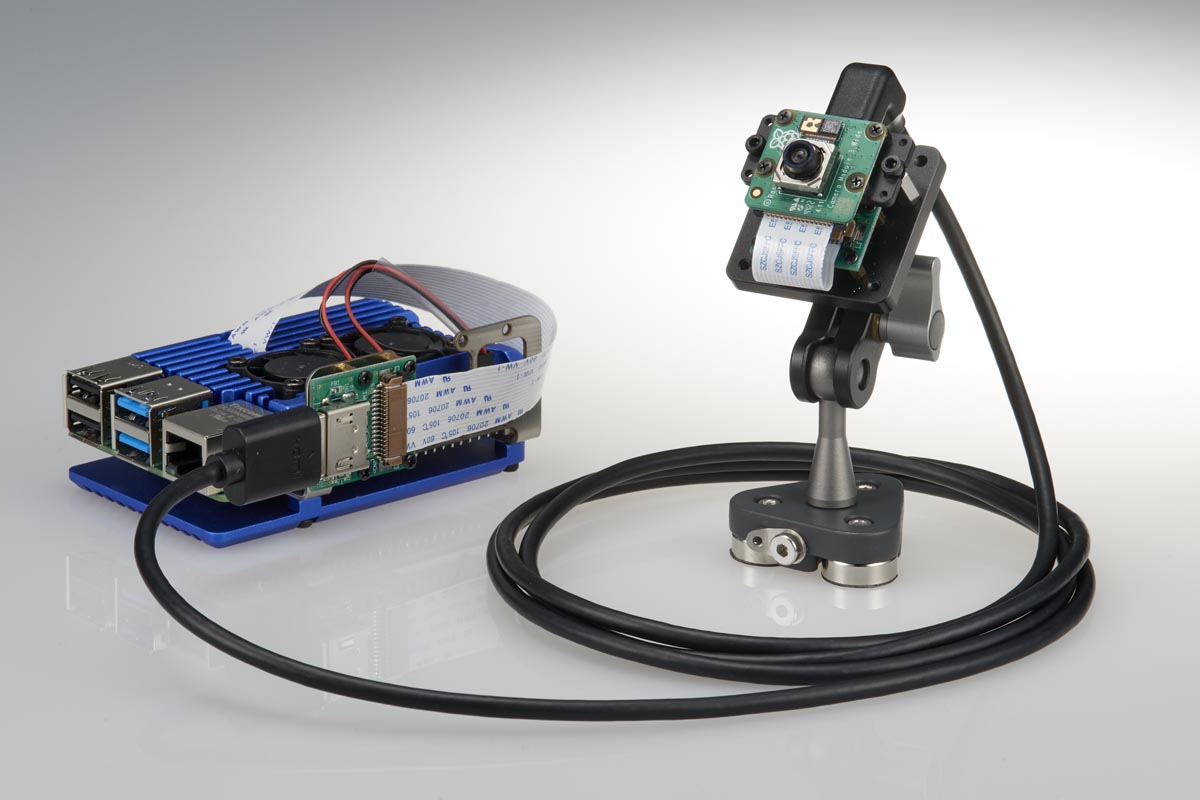

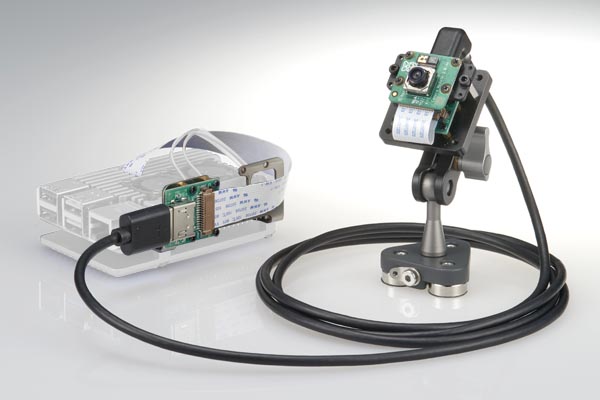

The CSI-HDMI kit allows you to smartly incorporate a CSI-HDMI conversion board that extends the Raspberry Pi camera cable via HDMI and allows it to be used away from the Raspberry Pi 5.
The CSI-HDMI conversion kit can also be used with the heat pipe that is incorporated into the Raspberry Pi 5 as a thermal solution.
A camera case with dome cover is also recommended if the camera is to be installed outdoors or in a dusty location.
| Camera | Raspberry Pi V2 / V3 / HQ / VR220 > |
| HDMI Cable | HDMI Type A-LShape microCable 1.5m【C027】> |
| CSI-HDMI | CSI-HDMI |
| Case | Dual Fan Aluminum Case【A061】> |
| Camera Stand | Magnet Plate S + Magic Arm > |
The CSI-HDMI conversion kit can also be incorporated with the dual-fan aluminum case for cooling the Raspberry Pi 4.
Use of a camera case with a dome cover is also recommended to protect the camera from rain and dust.
It is also possible to place two CSI-HDMI conversion boards on a Raspberry Pi 5 to operate a Raspberry Pi camera V2 (Entaniya VR220) and HQ camera connected via HDMI at the same time.
| Camera | Raspberry Pi V2 / V3 / HQ / VR220 > |
| HDMI Cable | HDMI Type A-L Shape micro Cable 1.5m【C027】> x 2 |
| CSI-HDMI | CSI-HDMI Board x 2 |
| Heat Pipe | for Raspberry Pi 5 > |
| Camera Stand | Magnet Plate + Magic Arm【G025】 > |
| Camera | Raspberry Pi V2 / V3 / HQ / VR220 > |
| HDMI Cable | HDMI Type A-L Shape micro Cable 1.5m 【C027】> |
| CSI-HDMI | CSI-HDMI Board |
| Waterproof Cube Case | Entaniya Waterproof Cube Case 150 【E019】 > Raspberry Pi Connector panel with pedestal 【E043】 Waterproof Connector USB Type C【C000】 Waterproof Connector USB 3.0 【C003】 Waterproof Connector HDMI 【C002】 |
| Camera Stand | Magnet Plate + Magic Arm【G025】 > |
If you wish to install the Raspberry Pi outdoors, a waterproof cube case can be used to protect the Raspberry Pi from rain.
If a camera case is used, the camera can also be protected from rain.
