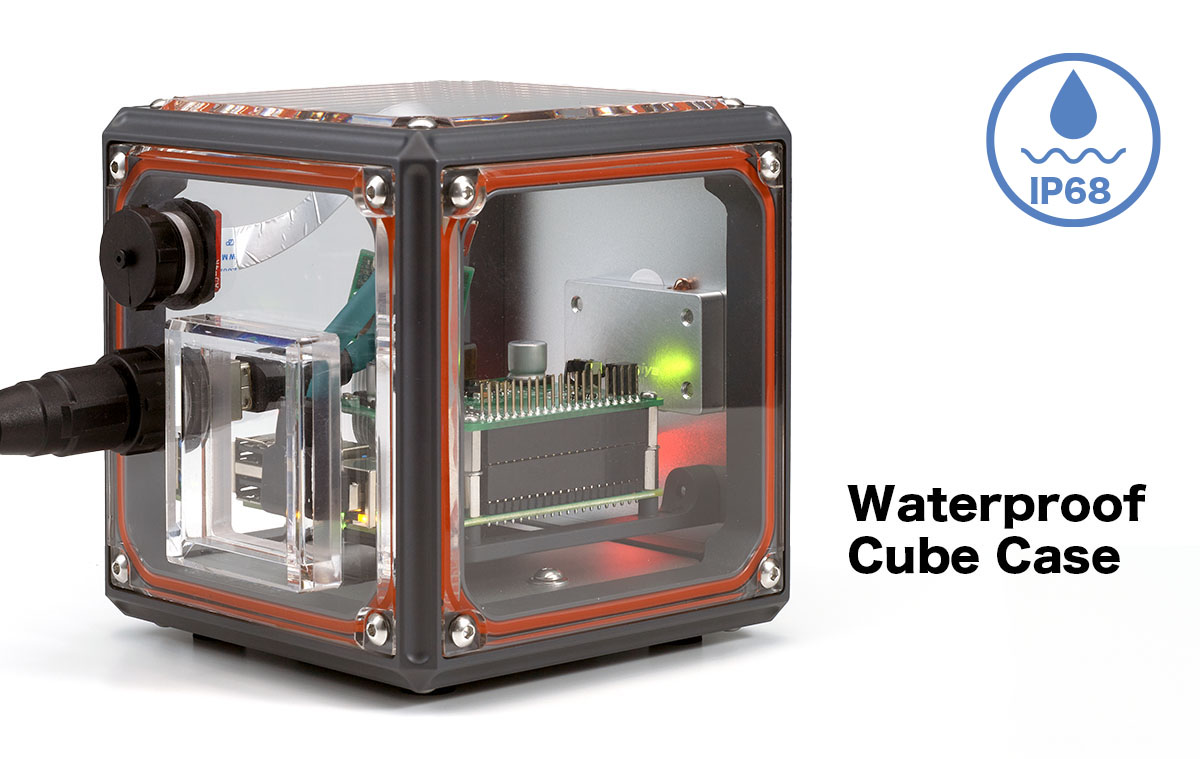

Water proof Cube Case
IP68 compliant
As a result of a water pressure test at 3 atmospheres, there was no internal flooding and IP68-compliant water resistance was confirmed, allowing the product to be used even when completely submerged in water.
Waterproof Test Report >
*At 5 atmospheres, the acrylic panel cracked, but there was no water ingress into the interior.
*The waterproof property of this product is effective only when the product is securely sealed.
*When using connectors, etc., it depends on the waterproof performance of the connectors.
Salt spray testing was used to evaluate accelerated atmospheric exposure corrosion.
There was no swelling, corrosion, or peeling to the painted surface during the 48-hour and 100-hour tests.
Salt Spray Test Report >
High customizability
The waterproof cube case is highly customizable, as all six panels are interchangeable, allowing you to change the panels according to your purpose or application.
For example, by using aluminum panels to which heat pipes can be connected as a heat dissipation measure when a Raspberry Pi is assembled inside the cube case, heat problems can be solved by efficient heat dissipation even inside a sealed cube.

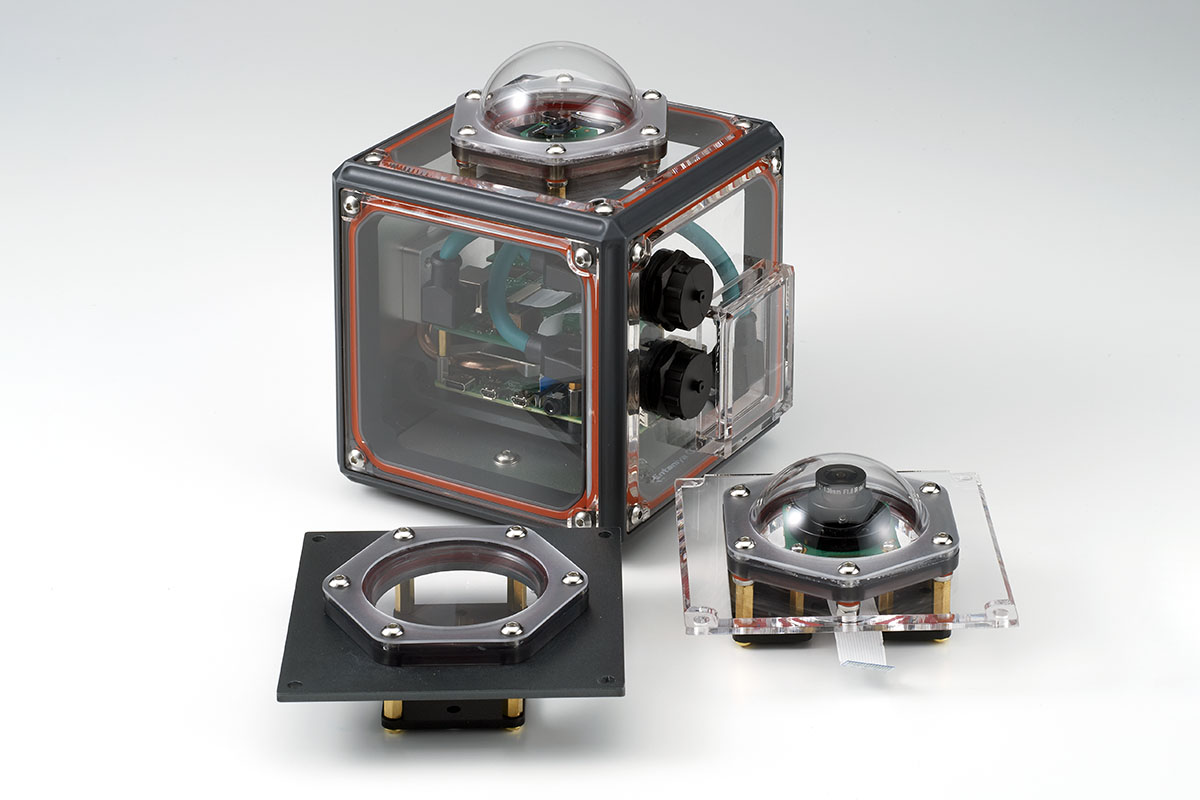

Interchangeable panels
Various types of panels can be selected, including acrylic panels, aluminum panels, and dome panels that are useful for storing cameras and other equipment. If a panel is damaged or cracked, it is easy to repair as only the panel needs to be replaced.

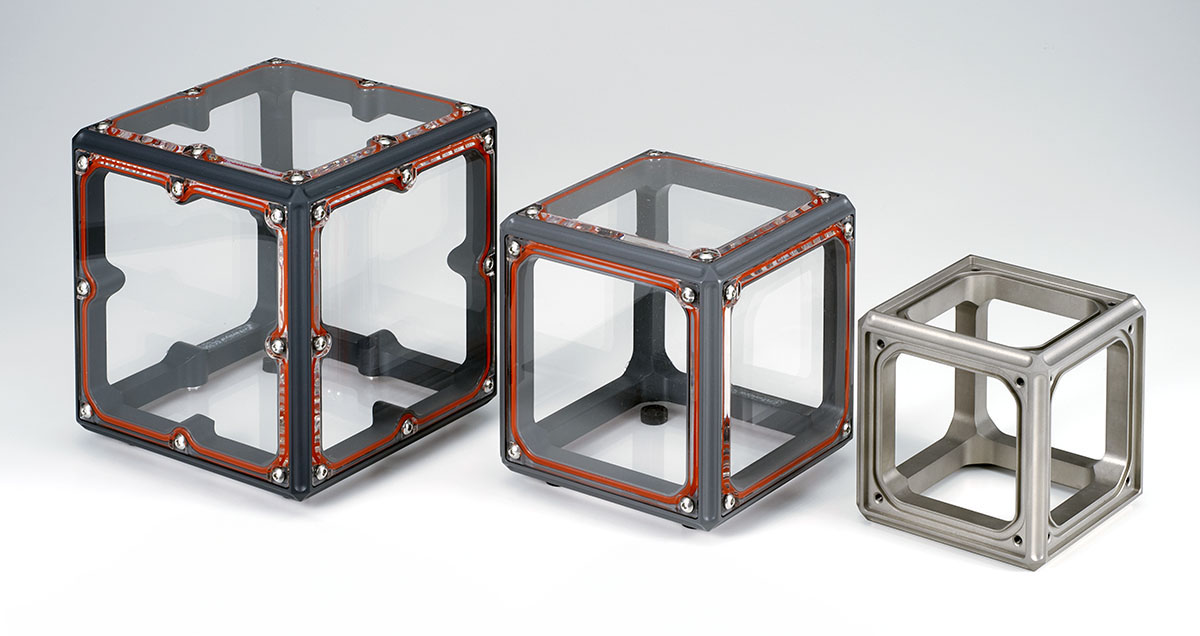

Size & Material
Aluminum frames are available in two sizes: 150 x 150 x 150 mm and 125 x 125 x 125 mm.
Corrosion-resistant titanium frames suitable for use in marine systems are also available.
Specifications
| Product name | Waterproof Cube Case 150 | Waterproof cube case 125 |
| Product Number | CC150 | CC125 |
| Size | 150 x 150 x 150mm | 125 x 125 x 125mm |
| Waterproof | IP68 compliant | IP68 compliant |

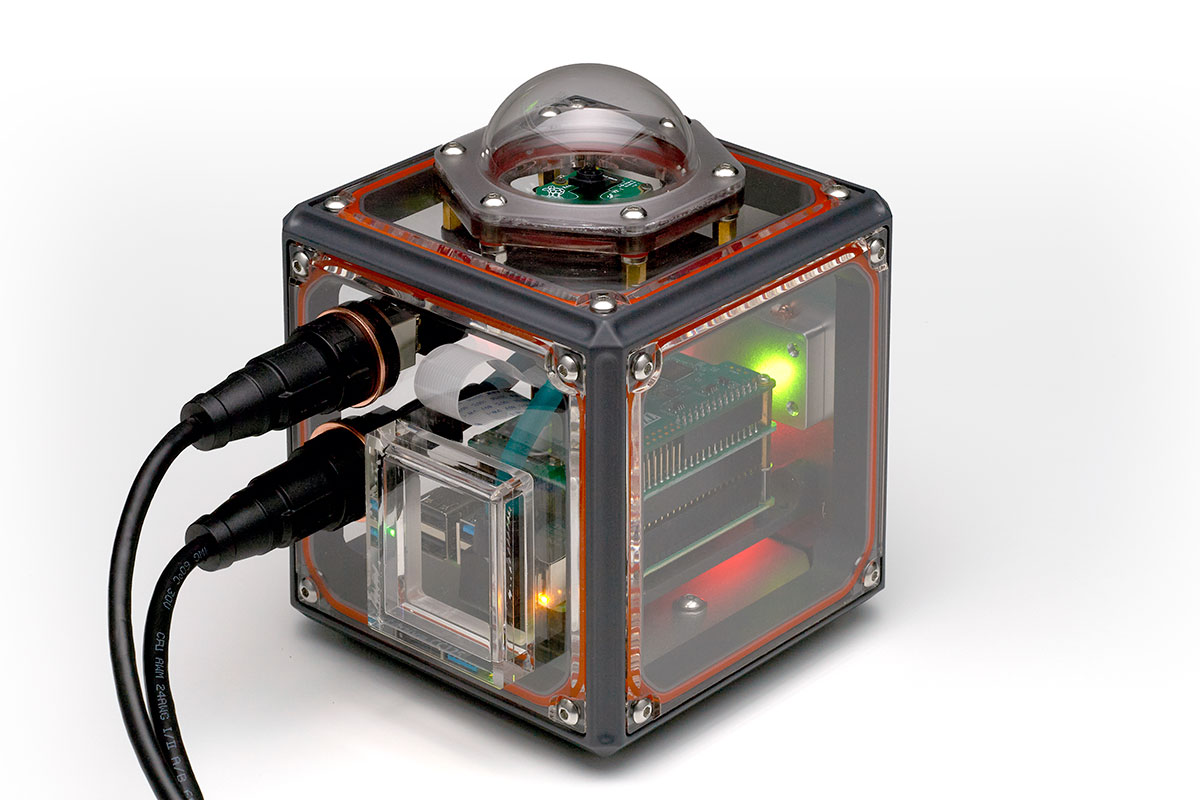

Examples of Use
The main body of the Raspberry Pi and the Raspberry Pi camera are assembled in a waterproof cube case CC125.
As a thermal countermeasure, heat pipes for the Raspberry Pi are connected to an aluminum panel to dissipate heat to the outside.
A 30mm high dome panel is used for the camera and a panel to connect waterproof connectors for external connections.
*This product was developed based on a concept by REC-DESIGN.
