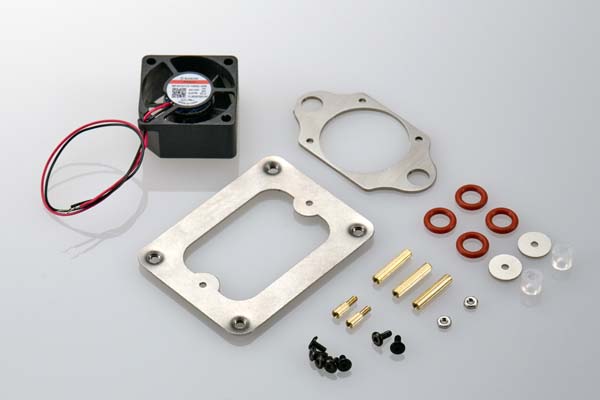

Entaniya Silent Mount315
Cooling system for sealed cases, boxes, and housings

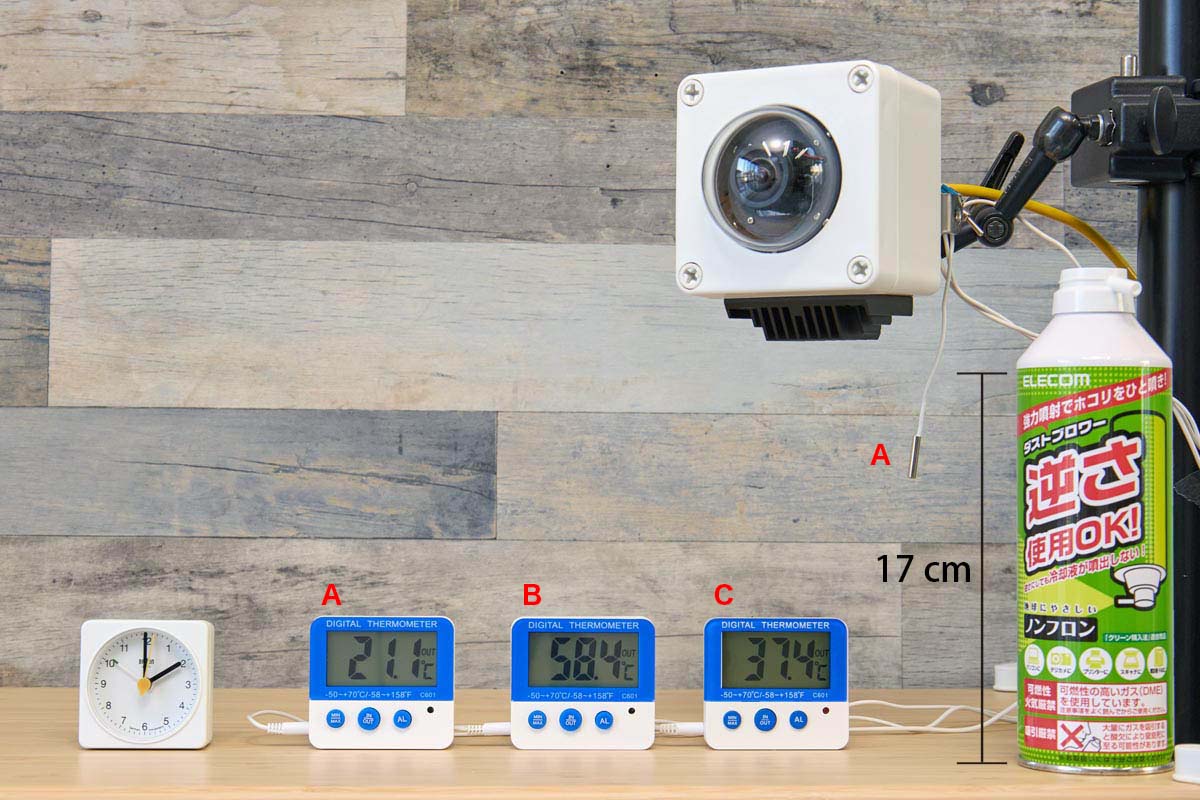

This product is a cooling system (heat sink + low-noise fan) designed to be mounted on a sealed enclosure to dissipate internal heat to the outside.
Product Features
Sealed structure compatible with waterproof cases and enclosures

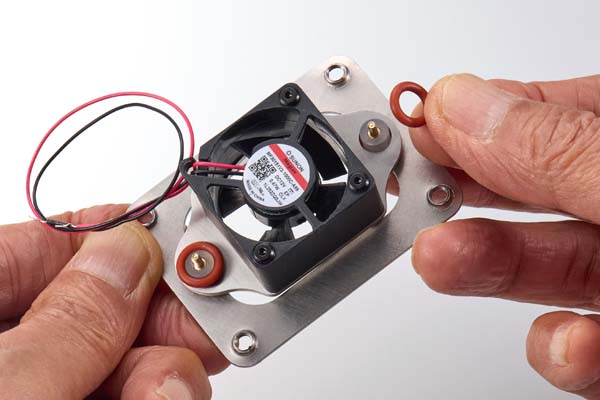

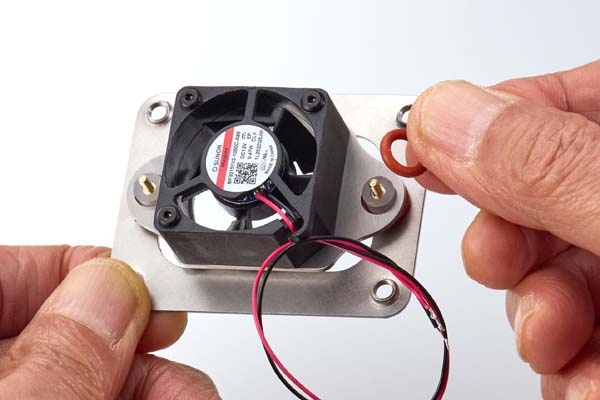

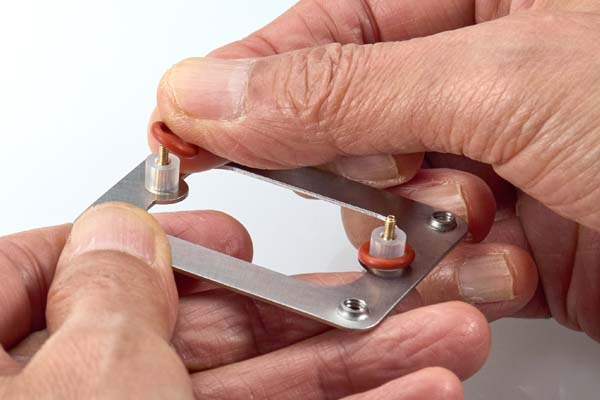

It adopts an O-ring sealing structure, making it suitable for waterproof housings and other enclosures requiring a high level of airtightness.

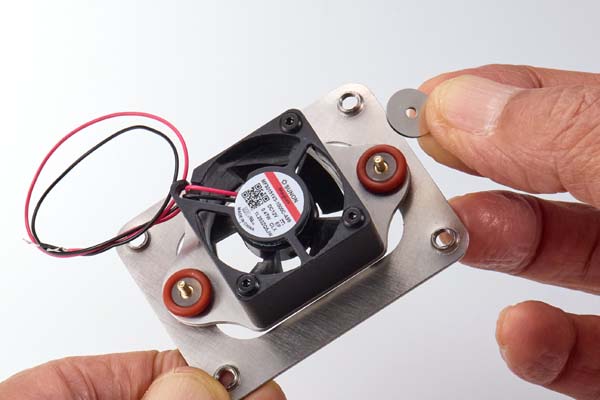

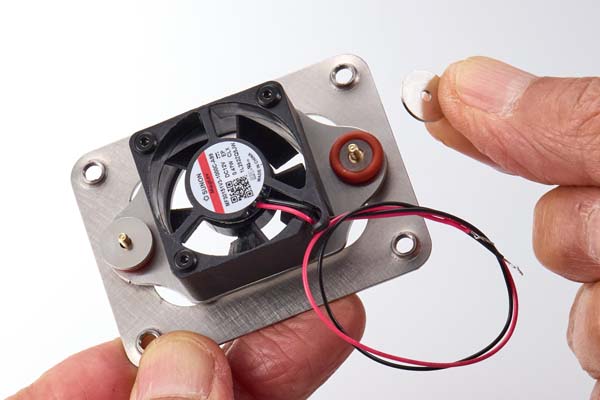

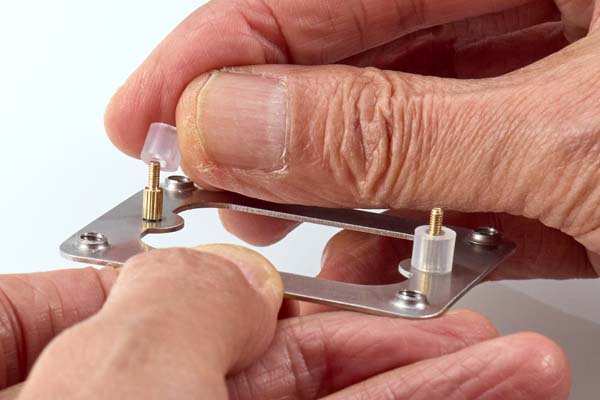

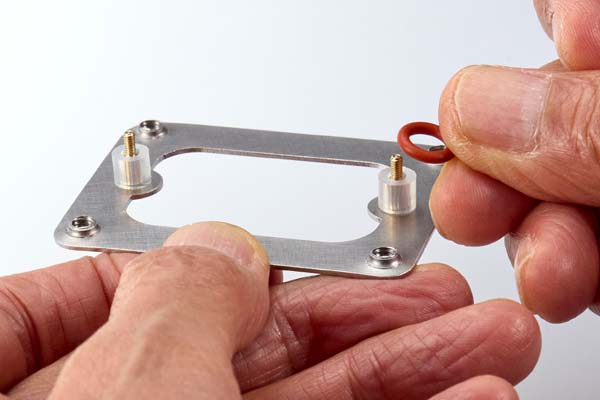

Floating vibration-isolation mount structure

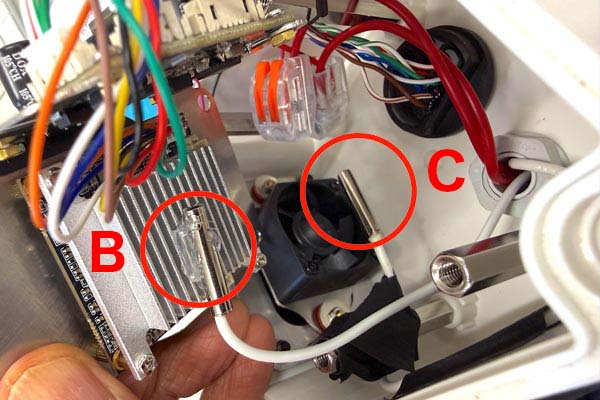

To improve heat dissipation efficiency, forced convection of the internal air is essential.
This system promotes air circulation within a sealed environment by incorporating a vibration-isolated fan structure, which suppresses vibration and resonance noise and ensures stable cooling performance even inside airtight housings.
Ultra-quiet fan for 315
Equipped with an ultra-quiet fan with a noise level of approximately 9.8 dBA (A-weighted).
Even when evaluated based on human hearing perception, this is an extremely low value. It is comparable to the sound of breathing or rustling leaves, meaning that in a typical indoor environment, the noise is effectively masked by ambient sound.

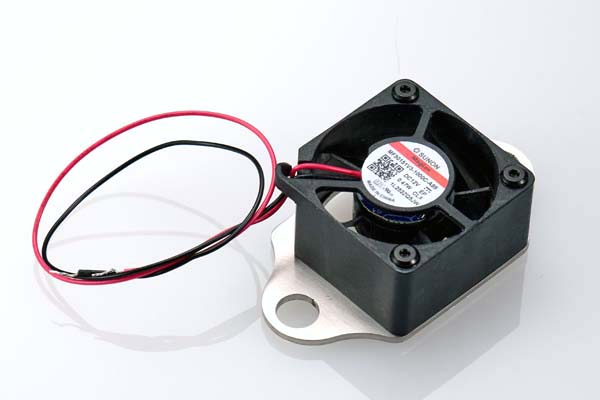

MF30150V3-1000C-A99
| Size | 30 × 30 × 15 mm |
| Rated Voltage | DC 5 V |
| Airflow | 2.8 CFM |
| Speed | 5200 rpm |
| Static Pressure | 0.05 inch-H₂O |
| Noise | 9.8 dB(A) |
| Current Consumption | 45 mA（5 V） |
| Weight | 9.7 g |
| Bearing | SUNON MAGLev® magnetic levitation bearing |
MF30151V3-1000C-A99
| Size | 30 × 30 × 15 mm |
| Rated Voltage | DC 12 V |
| Airflow | 2.7 CFM |
| Speed | 4600 rpm |
| Static Pressure | 0.05 inch-H₂O |
| Noise | 7.8 dB(A) |
| Current Consumption | 20 mA（12 V） |
| Weight | 9.7 g |
| Bearing | SUNON MAGLev® magnetic levitation bearing |

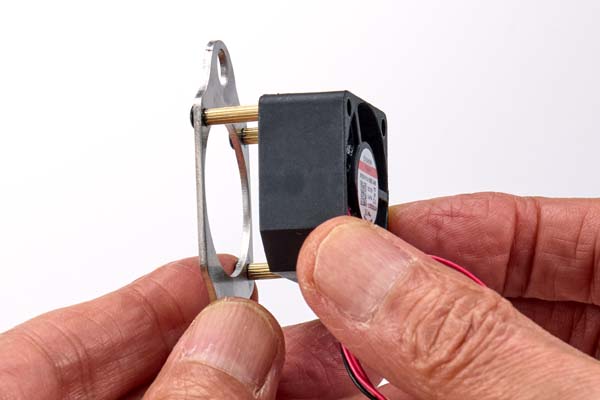

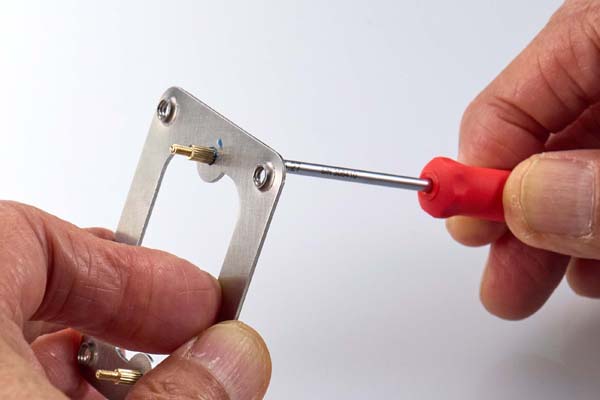

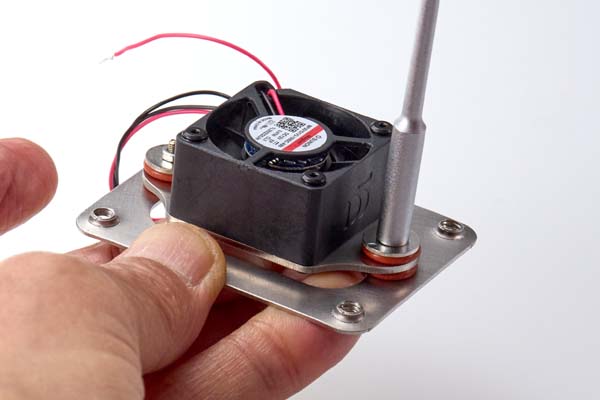

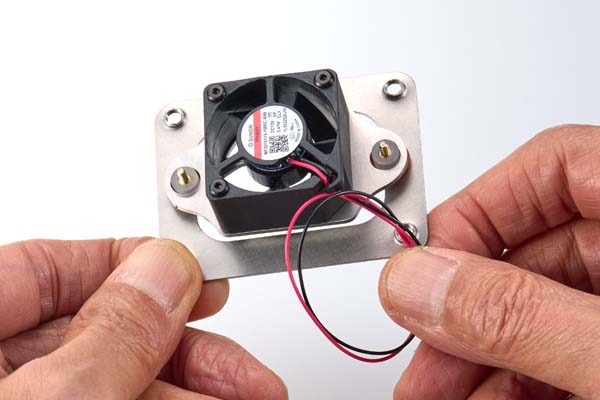

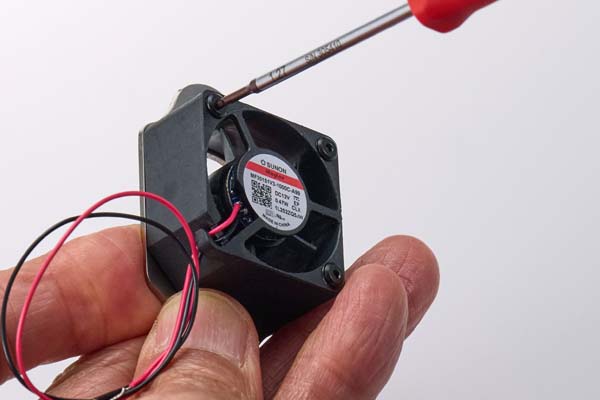

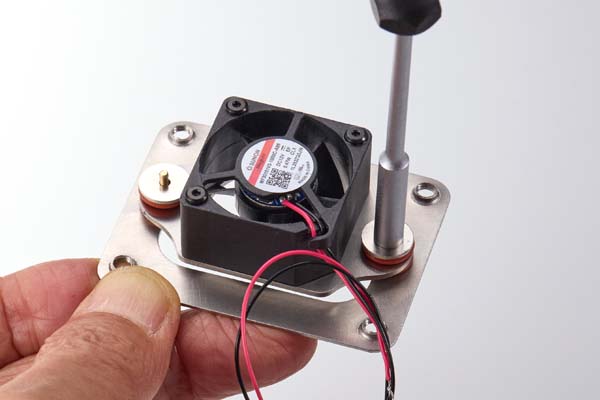

Assembly Instructions

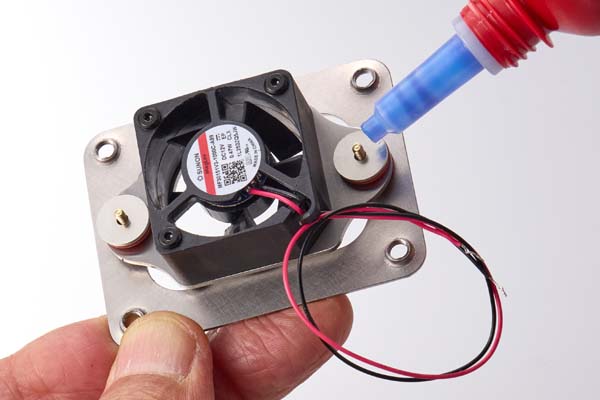

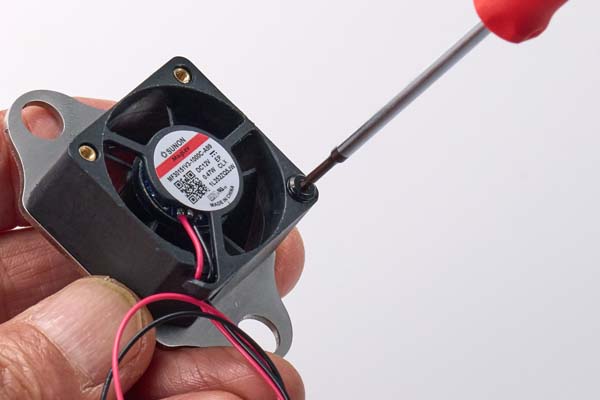

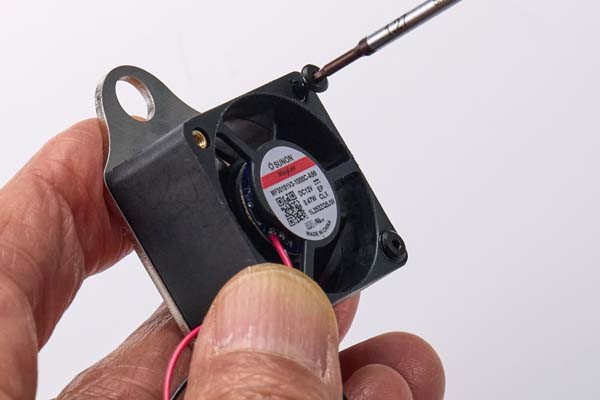

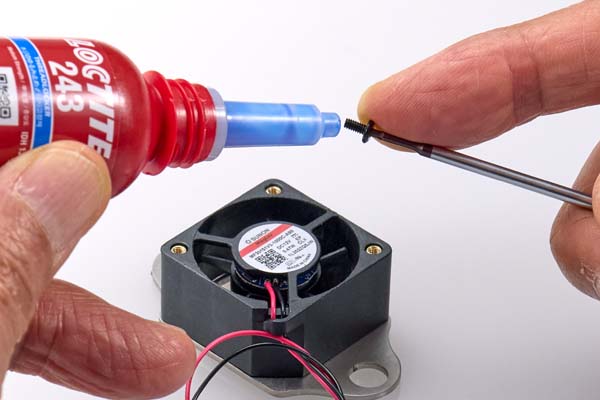

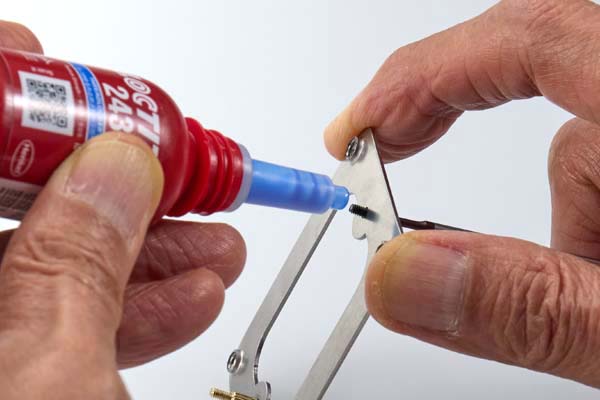

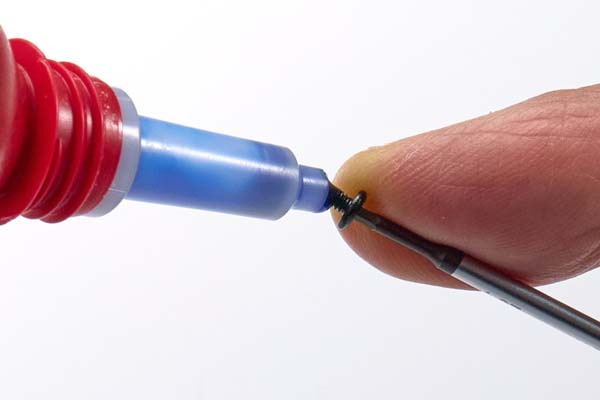

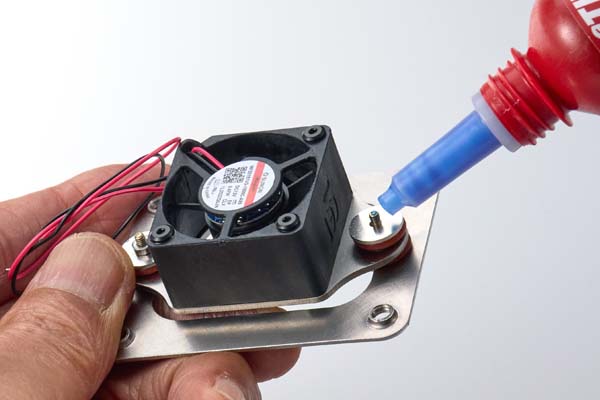

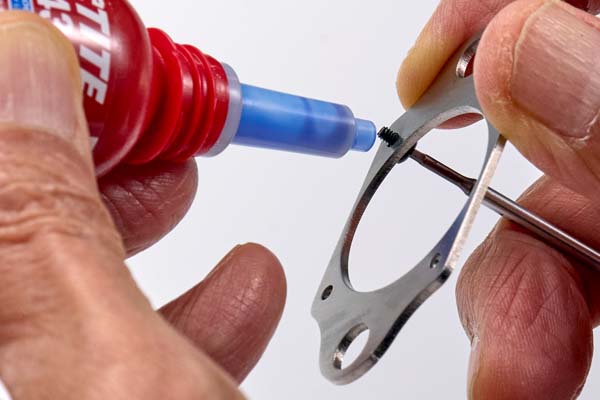

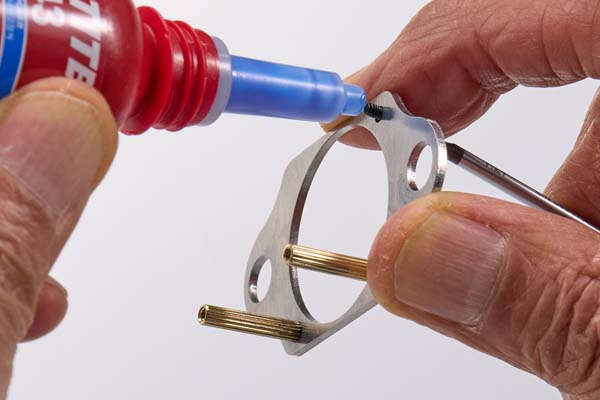

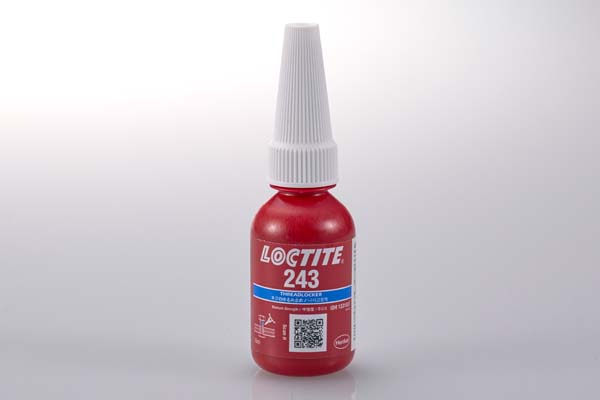

When assembling the vibration-resistant fan structure, please use a thread-locking adhesive (LOCTITE 243) on the screws.
If a thread-locking adhesive is not used, the screws securing the fan may loosen due to vibration.
