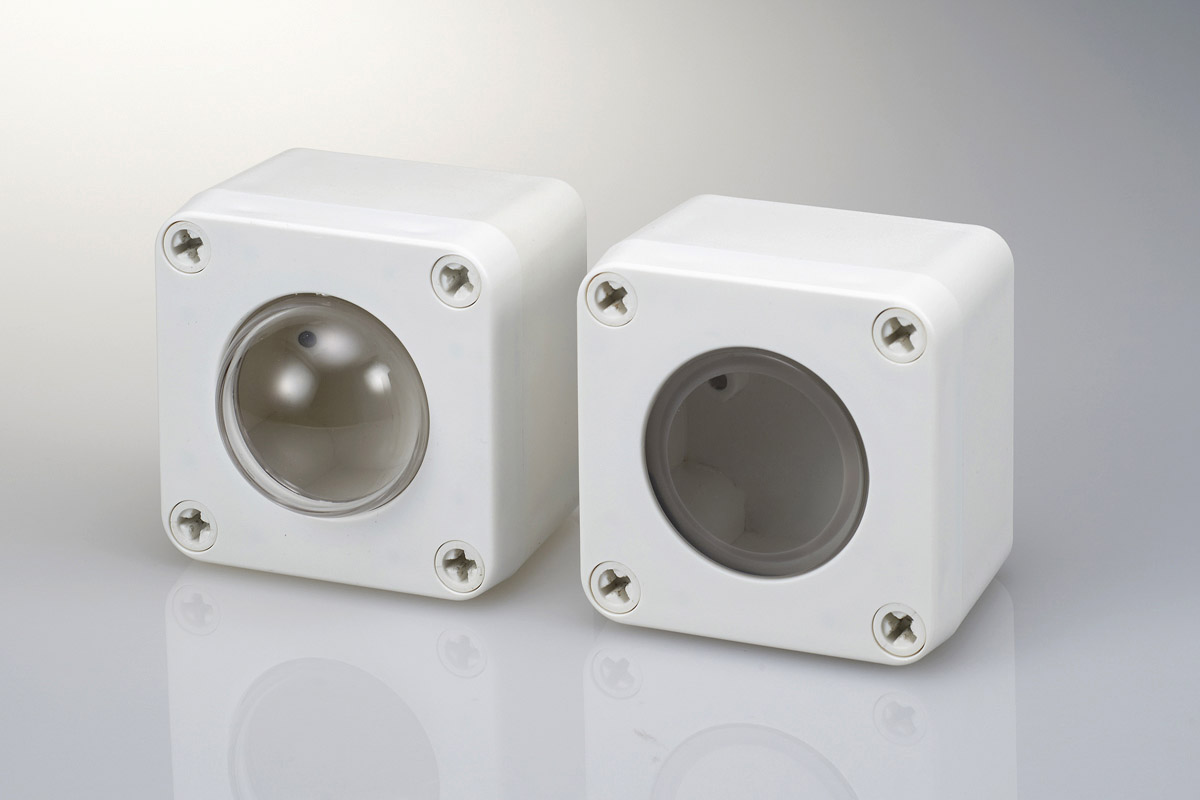

Waterproof Camera Case 80
Waterproof camera case measuring 80 x 80 x 60 mm mm.
| Product Name | Waterproof camera case 80 |
| Box Size | 80 x 80 x 60 mm |
| Dome Size（ Height） | 27mm / Flat |

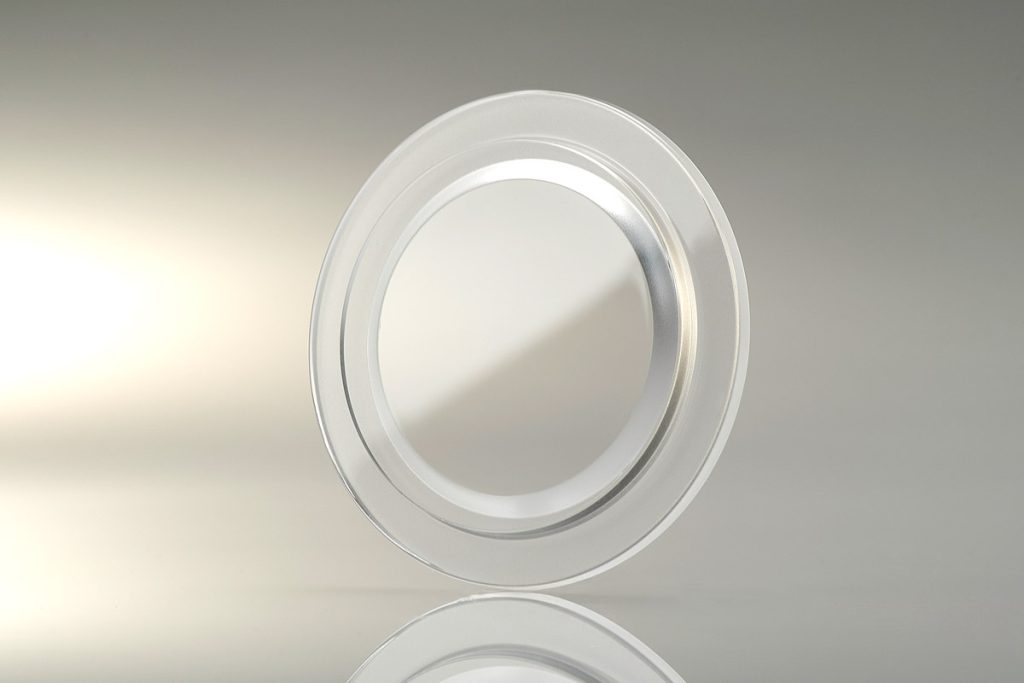

| Material | Body：ASA Dome：Acrylic |
| Supported cameras (example) | Raspberry Pi Camera V2 / V3 / Entaniya VR220など |
| Product Numbers | 2 holes on the back 【E119】Dome Height 50mm：WP-CR-80-27-B2 【E120】Dome Height 35mm：WP-CR-80-FL-B2 1 hole on the side 1 hole on the back 【E121】Dome Height 50mm：WP-CR-80-27-B1S1 【E122】Dome Height 35mm：WP-CR-80-FL-B1S1 without holes 【E123】Dome Height 50mm：WP-CR-80-27 【E124】Dome Height 35mm：WP-CR-80-FL |
| Included in the package | The case will be shipped as parts. Case with holes – Case body – O-ring – O-ring bracket – O-ring bracket ・Acrylic dome – Vent filter seal φ21.5mm 2 pieces – Cable gland M16 Case without holes – Case body – O-ring – O-ring bracket – O-ring bracket ・Acrylic dome |

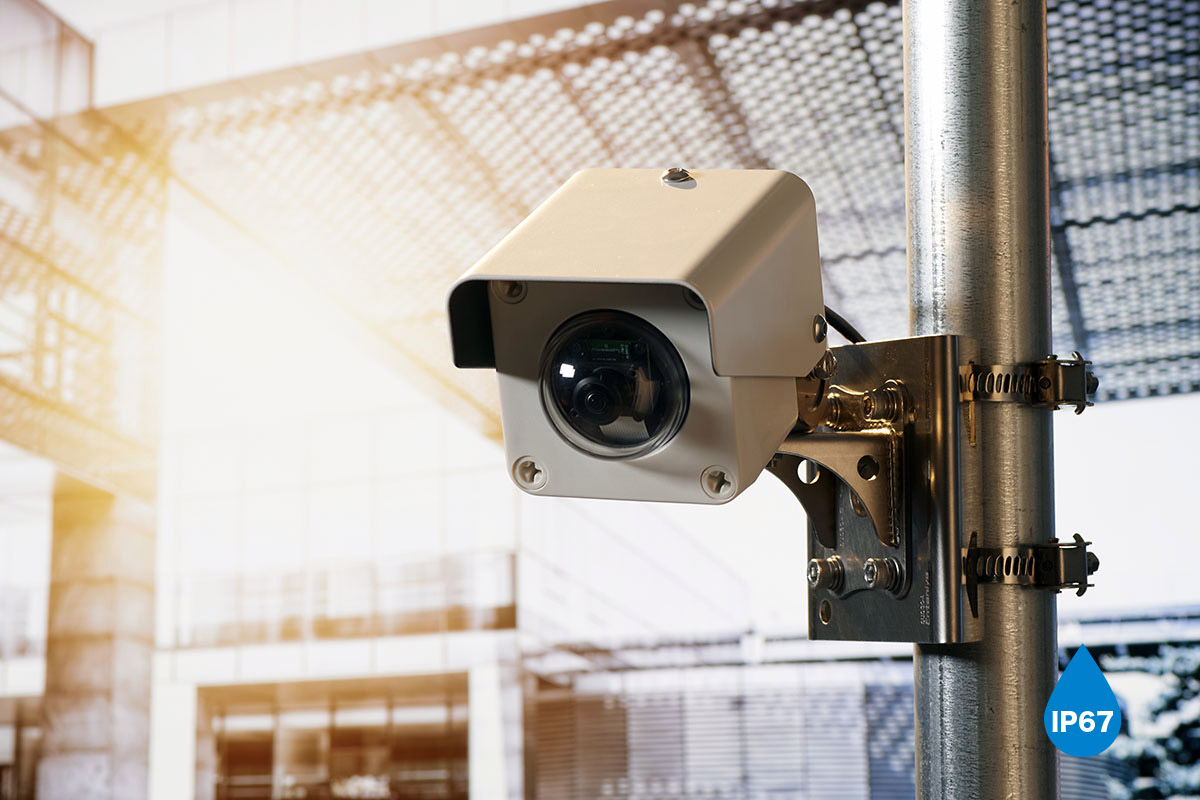

Waterproof performance in accordance with IP67
Water pressure test results confirmed water resistance in accordance with IP67 (30 minutes at a depth of 1m).
Waterproof Test Report >
The waterproof property of this product is effective only when the product is securely sealed.
Supports Raspberry Pi cameras
The set for Raspberry Pi cameras includes a plate and spacer for integration with Raspberry Pi HQ cameras, V2, V3, etc.
These plates can be assembled together with HDMI conversion or Ethernet conversion modules.
The embedding instructions >

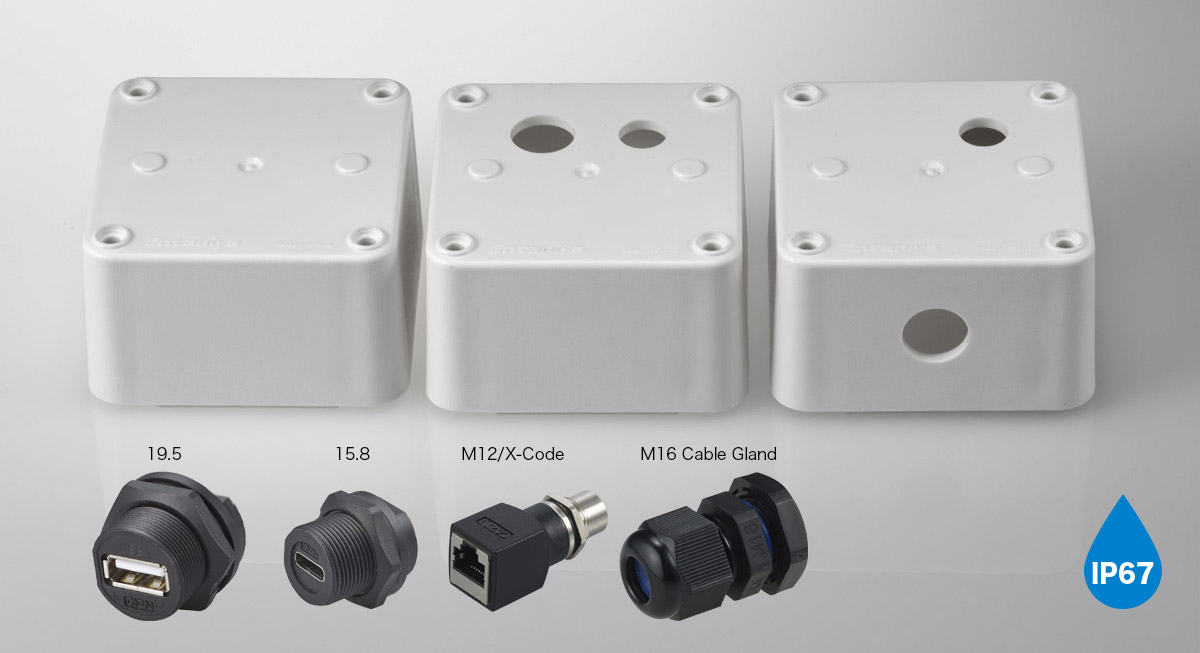

Location of holes
The case is drilled with holes for cables and vent filters.
From the right in the photo, you can choose from “ without holes,” “two holes on the back,” “one hole on the side (for the cable), and one hole on the back (for the vent filter).
Related Products
How to assemble the case
Set the O-ring in the groove around the window hole on the back side of the case lid.
After setting the dome cover, set the oshisae crown.
Fasten the screws of the crown firmly to fix it in place and complete the process.
