All-Weather Camera Housing 100 (IP67)
This is a compact housing case designed to protect board cameras and USB cameras from rain, dust, and water splashes, making it suitable for installation in factory facilities as well as outdoor environments.
Features
Die-Cast Aluminum Mounting Ring
he dome cover is securely fastened from the inside of the top lid using a die-cast aluminum ring, offering both stability and a clean, unobtrusive exterior.
Flat Cover Made with High-Transparency Acrylic
The flat-type cover uses high-transparency acrylic, the same optical-grade material commonly used in camera lenses.
This acrylic offers excellent optical properties, minimizing distortion and reflection to deliver clear and accurate images without compromising camera performance.
Electromagnetic Shielding (EMI Protection): Optional Feature
We offer copper coating services as an effective solution for mitigating electromagnetic interference (EMI) in electronic devices and camera housings.

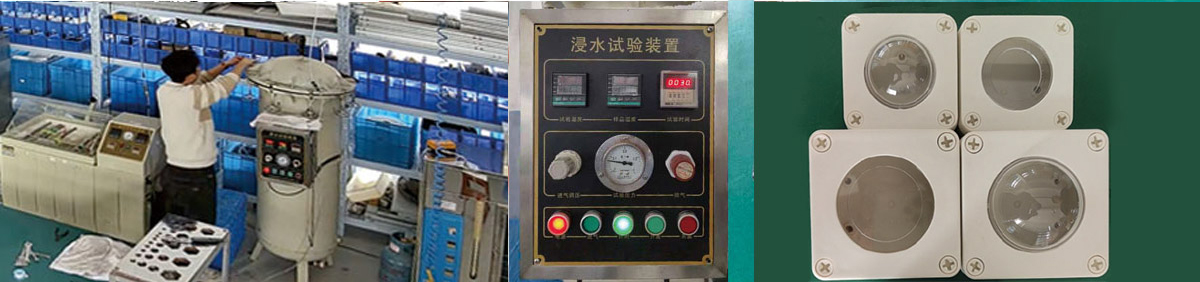

Passed the IP67-compliant water pressure test
Waterproof Performance Verified to IP67 Standard through Pressure Testing
With IP67-rated waterproof protection, the camera is safeguarded even in outdoor or dust- and water-prone industrial environments.
Waterproof Test Report >
The waterproof property of this product is effective only when the product is securely sealed.

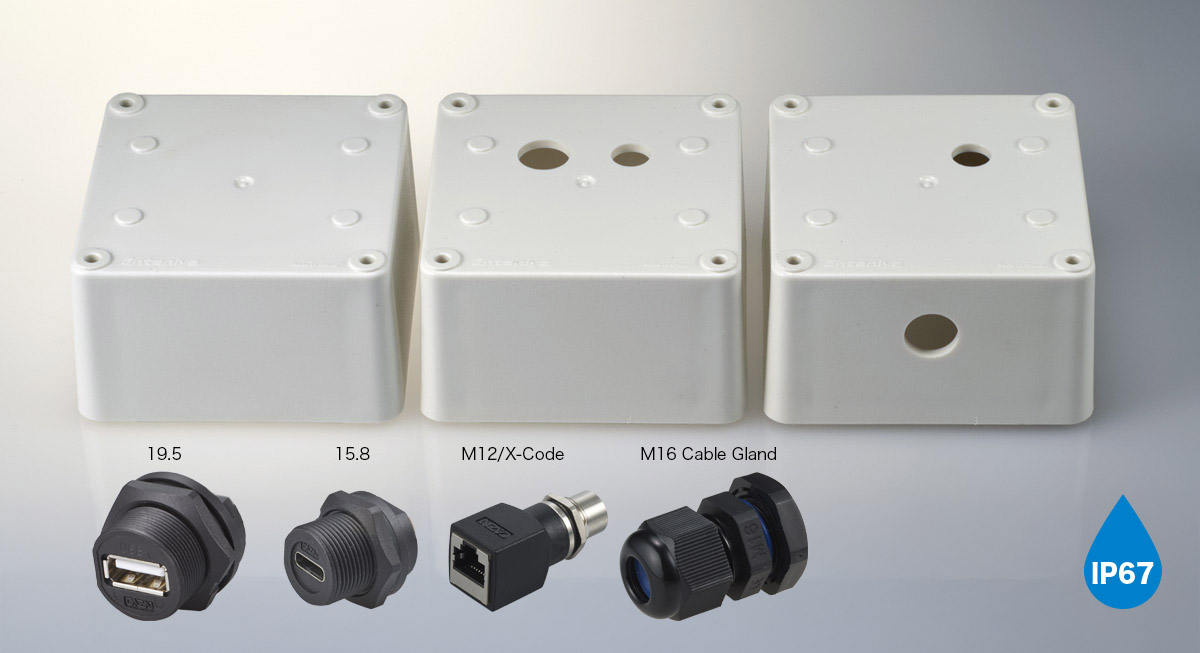

Drilled holes
Pre-Processed Openings for Flexible Cable Configuration
We also offer cases that are pre-drilled with cable entry holes, customized according to the type of connectors and cables to be used, so they can be prepared to suit the installation environment.
| Product Name | Small Outdoor camera housing 100 |
| Box Size | 100 x 100 x 75 mm |
| Dome Size（Height） | 59mm / 35mm / Flat |
| Material | Body：ASA Dome：Acrylic |
| Product Numbers | Dome Height 59mm：WP-CR-100-59 Dome Height 35mm：WP-CR-100-35 Flat：WP-CR-100-FL |
Housing Case Sets for Various Camera Brands
Accessories
How to assemble the case
Set the O-ring in the groove around the window hole on the back side of the case lid.
After setting the dome cover, set the oshisae crown.
Fasten the screws of the crown firmly to fix it in place and complete the process.
