All-Weather Camera Housing 100 (IP67)
Compact and high performance
waterproof and dustproof protection (IP67) .
This is a compact outdoor camera housing case that can be used with board cameras, USB cameras, and similar devices, protecting them from rain, dust, and other environmental elements.

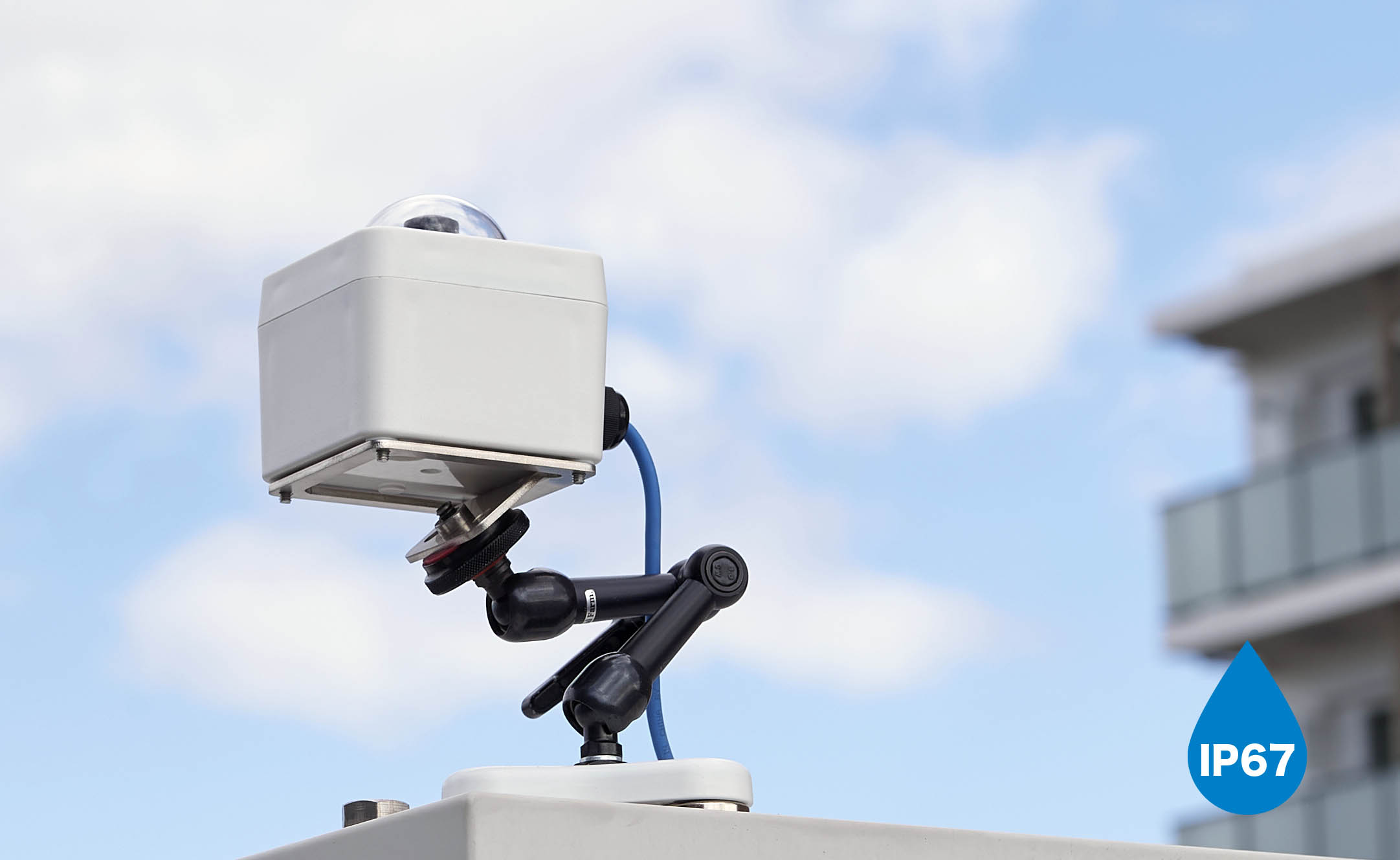

With an IP67 waterproof and dustproof rating, it is ideal for installing cameras outdoors or in factory facilities where there is a lot of splashing water or dust.

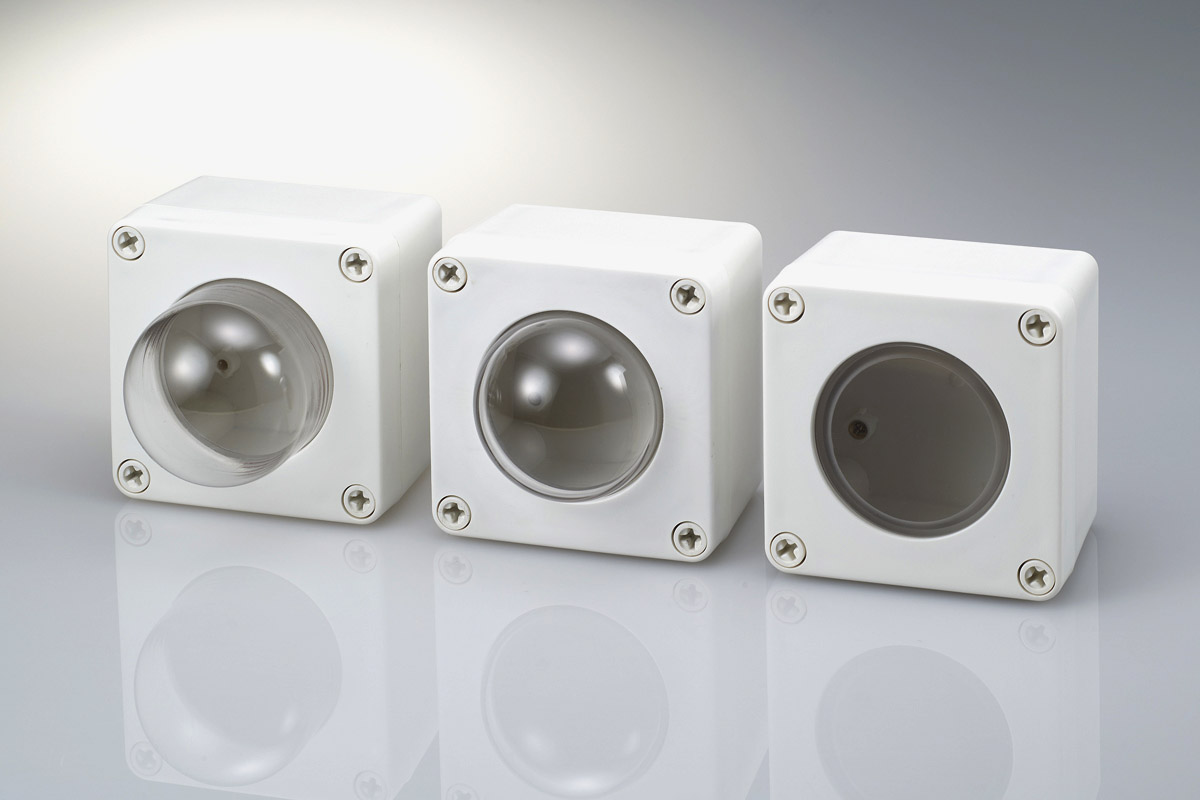

All-weather small outdoor camera housing.
Dimensions 100 x 100 x 75 mm
Die-cast fixing ring
The dome cover of the small outdoor camera housing is fixed from the back side of the top cover.
The special part for fixing the dome cover is a die-cast aluminum ring.
This special ring allows for a simple design that can be used in any environment.

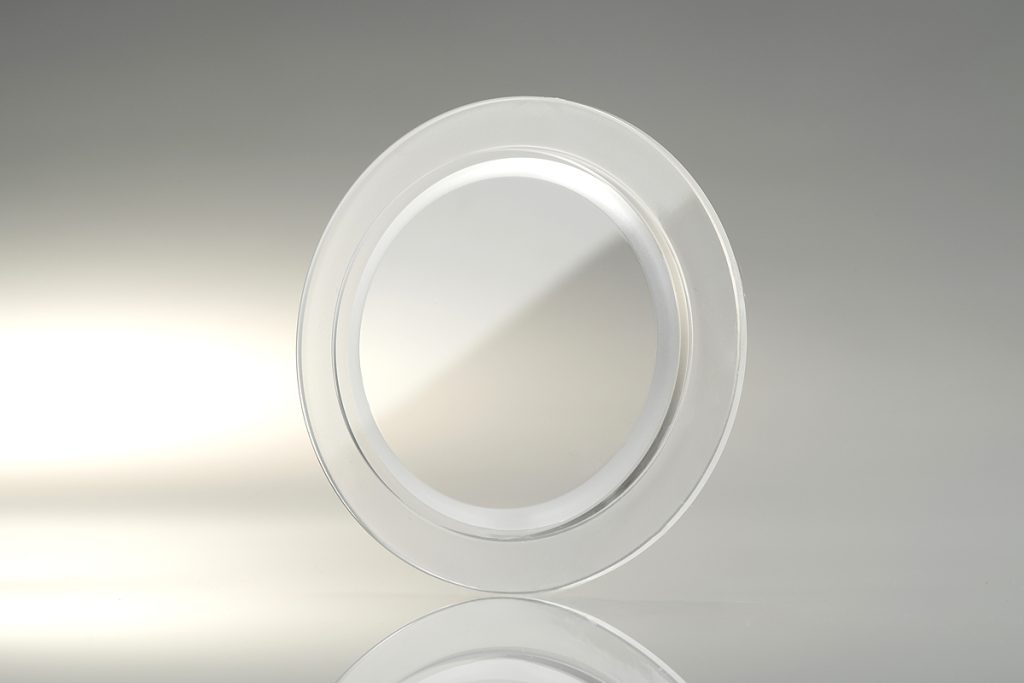

Flat cover made of acrylic used for lenses
Flat type covers are made of acrylic with high transparency, which is also used for lenses.
Waterproof performance in accordance with IP67
Water pressure test results confirmed water resistance in accordance with IP67 (30 minutes at a depth of 1m).
Waterproof Test Report >
The waterproof property of this product is effective only when the product is securely sealed.
Camera embedded example
Compatible with a wide range of cameras from various manufacturers, including GigE board cameras and industrial cameras such as Raspberry Pi, SMTSEC, The Imaging Source, Arducam, and ELP.

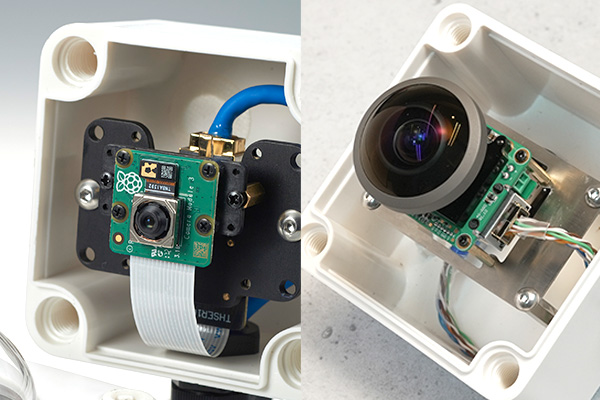

Board camera embedded example
We showcase examples of how board cameras and camera modules can be integrated into our housing.
Other camera models can also be used as long as they fit the dimensions.
Feel free to contact us for more information.
Location of holes
The case is drilled with holes for cables and vent filters.
From the right in the photo, you can choose from “ without holes,” “two holes on the back,” “one hole on the side (for the cable), and one hole on the back (for the vent filter).
| Product Name | Small Outdoor camera housing 100 |
| Box Size | 100 x 100 x 75 mm |
| Dome Size（ Height） | 59mm / 35mm / Flat |
| Material | Body：ASA Dome：Acrylic |
| Supported cameras (example) | Raspberry Pi Camera V2 / V3 / HQ / Entaniya VR220など |
| Product Numbers | 2 holes on the back 【E108】Dome Height 59mm：WP-CR-100-59-B2 【E109】Dome Height 35mm：WP-CR-100-35-B2 【E110】Flat：WP-CR-100-FL-B2 1 hole on the side 1 hole on the back 【E111】Dome Height 50mm：WP-CR-100-50-B1S1 【E112】Dome Height 35mm：WP-CR-100-35-B1S1 【E113】Flat：WP-CR-100-FL-B1S1 without holes 【E114】Dome Height 50mm：WP-CR-100-50 【E115】Dome Height 35mm：WP-CR-100-35 【E116】Flat：WP-CR-100-FL |
| Included in the package | The case will be shipped as parts. Case with holes – Case body – O-ring – O-ring bracket – O-ring bracket ・Acrylic dome – Vent filter seal φ21.5mm 2 pieces – Cable gland M16 Case without holes – Case body – O-ring – O-ring bracket – O-ring bracket ・Acrylic dome |
A wide range of optional accessories to meet all necessary equipment needs.
Not only does it provide casing for the camera, but it also includes all the necessary equipment for installation.
How to assemble the case
Set the O-ring in the groove around the window hole on the back side of the case lid.
After setting the dome cover, set the oshisae crown.
Fasten the screws of the crown firmly to fix it in place and complete the process.
