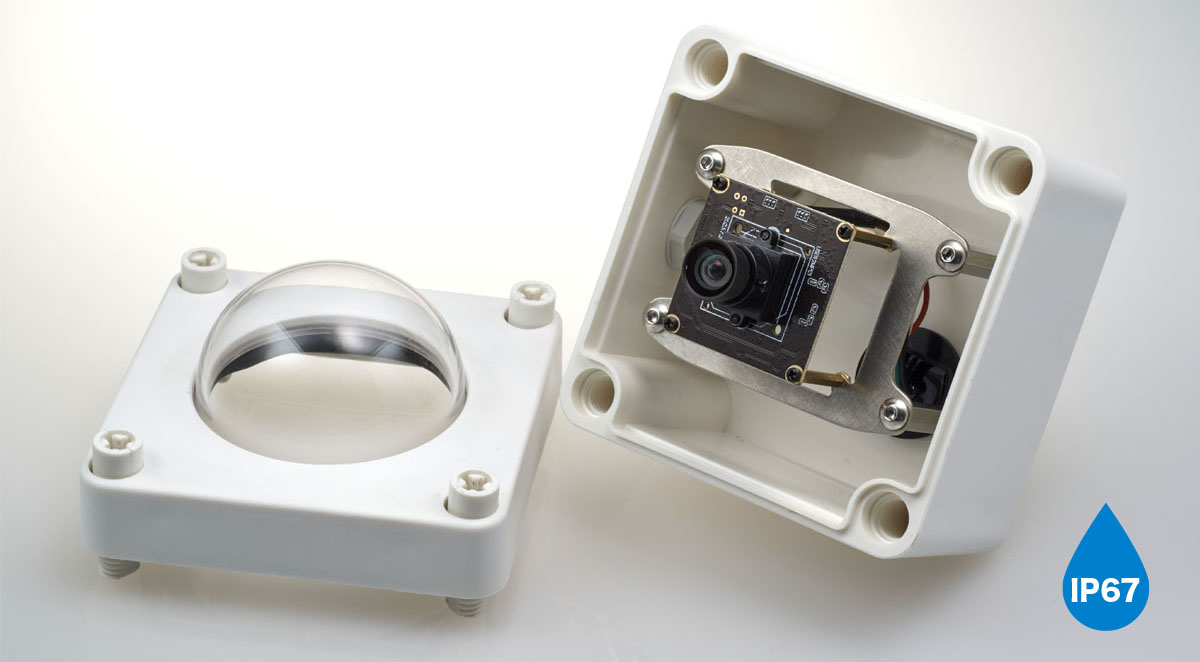

Waterproof Kit for ELP Cameras

IP67 waterproof housing for using ELP cameras in outdoor and harsh environments.

Overview

Ideal for outdoor monitoring, factory environments, and IoT applications.

A camera housing specifically designed and optimized for ELP board cameras and USB cameras. Its precise design, tailored to the board size and lens position, ensures secure mounting and stable imaging performance. Equipped with dustproof and drip-resistant features suitable for outdoor monitoring and industrial use, it supports long-term continuous operation. From prototyping to full-scale deployment, it provides a reliable camera solution across a wide range of applications.

All-in-one solution—just add your camera

All-in-one solution for waterproofing, wiring, and mounting

This product is an all-in-one set that includes not only the camera housing itself, but also all necessary components for installation, such as a dedicated mounting plate, spacers, and a cable with a waterproof connector.
Simply prepare your camera, and you can proceed with assembly and installation smoothly without the need for any additional parts.

Package Contents

Camera housing unit (includes both dome and flat windows)
Anti-condensation vent filter seal
Cable (ELP camera–specific USB cable)
Camera mounting plate and spacers

IP67 Rated

Designed to meet IP67 standards, it completely prevents dust ingress and withstands temporary immersion in water, ensuring stable operation even in harsh environments such as outdoor and industrial settings.

Compatible with ELP Board Cameras and USB Cameras

ELP USB cameras (including board-type and USB-type models) typically come in standard board sizes of 38 mm × 38 mm or 32 mm × 32 mm.
Cameras of these sizes can be securely mounted using the included mounting plate.

In addition, many cameras housed in enclosures (not just bare boards) can also be installed. If you have any concerns about compatibility or integration, please feel free to contact us.

Request a Quote / Contact Us

f you would like a quotation based on product pricing or order quantity, please contact us here.
We will propose the optimal configuration tailored to your specific application and requirements.

For technical inquiries—such as specifications, installation methods, or compatibility with supported devices—please feel free to reach out as well.
Our specialists will support you from pre-deployment planning through to operational use.

Use Cases

Product Configuration

Direct Cable Connection Type

Components shown in blue are included in the set.

Set Contents

Included Items

ハウジング本体 Housing unit Dome / flat cover USB cable Vent filter seal

Cable and Connector Type

Components shown in blue are included in the set.

Set Contents

Included Items

Housing unit Dome / flat cover USB cable USB inner cable Vent filter seal

Selection Guide

Size Selection

Dimensions

サイズ100 Size 100 100 × 100 × 75 mm Size 80 80 × 80 × 60 mm

Size 100
Suitable for applications requiring interchangeable lenses, larger lenses, or integration of additional devices such as various sensors.

Size 80
A compact size ideal for use with a standard camera module alone. Best suited for simple configurations and installations.

Window Type

Flat
A flat window type designed for capturing clear images with minimal distortion.

Dome
A dome-shaped window ideal for wide-angle lenses, providing a broader field of view.

Difference Between Direct Cable Type and Cable Connector Type

Direct Cable Connection Type
This type connects the USB cable directly to the camera. With fewer connection points, it offers more stable operation.

Cable and Connector Type
This type allows the case and cable to be detached, providing better maintainability.
The cable length can also be adjusted as needed.

Cable Position

You can choose the cable outlet position according to your application and installation method.

Q & A

Q. Can it really be used outdoors?
A. Yes. It has passed IP67 testing and can be used outdoors without issues.
It is made from highly weather-resistant ASA resin and acrylic.

Q. Which ELP cameras are supported?
A. For board cameras, it supports standard board sizes of 38 × 38 mm and 32 × 32 mm.
There is also a track record of mounting cameras housed in enclosures. Please contact us for compatibility confirmation.

Q. Is condensation prevention necessary?
A. Condensation can be prevented using the included breathable vent filter.

Q. Can it be used for long periods?
A. Yes. It uses highly weather-resistant ASA resin and acrylic, making it suitable for long-term use.

Q. Are there mounting parts available for installation?
A. Yes. Stainless steel brackets and hoods suitable for outdoor installation are available.

Download Materials

Request a Quote / Contact Us

f you would like a quotation based on product pricing or order quantity, please contact us here.
We will propose the optimal configuration tailored to your specific application and requirements.

For technical inquiries—such as specifications, installation methods, or compatibility with supported devices—please feel free to reach out as well.
Our specialists will support you from pre-deployment planning through to operational use.

Accessories

Assembly Instructions

How to Assemble the Case

Place the red O-ring along the groove around the window opening on the inside of the case lid.

Set the dome cover in place, then attach the retaining ring.
Tighten the screws on the retaining ring securely to complete the assembly.
