List of Cables for Camera Housing Integration

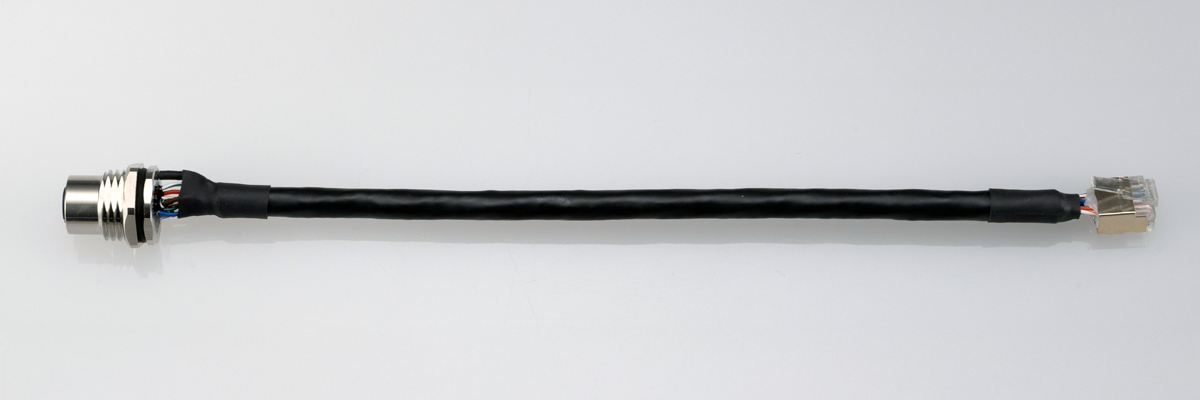

Connector integrated Ethernet cable
Connector size is 19.5 mm

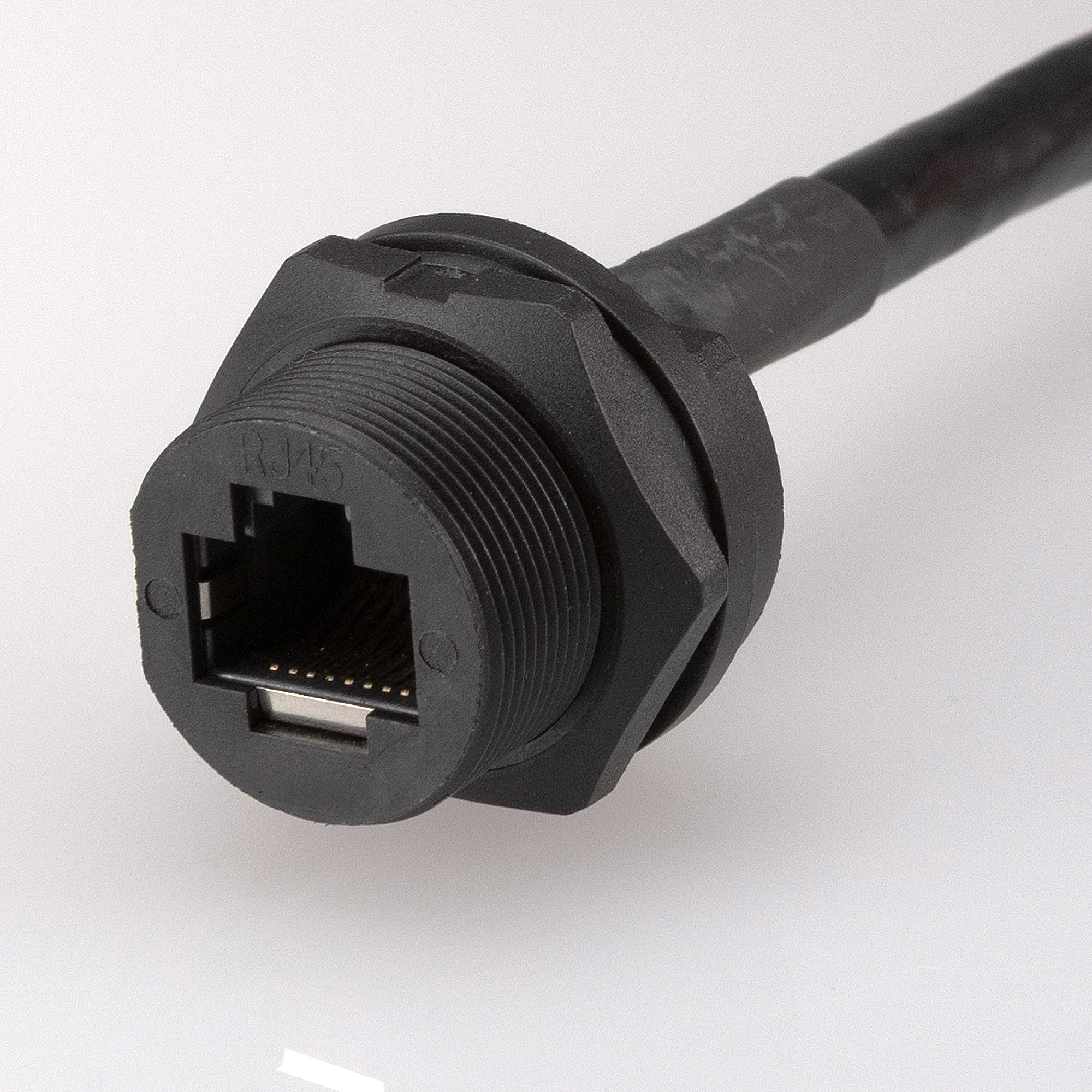

RJ45 (Female) – RJ45 (Male) Cat 6A Ethernet Cable
Specifications
Cable Length: 130 mm ± 5 mm (cable section only)
Category: Cat 6A
Power over Ethernet: PoE+ compatible
Waterproof Connector Rating: IP67
Product Number: CA-195-RJ45-RJ45-FM-130-CT6
Compatible Camera (Verified):
DFM47GR0521-MLP – Tested with cameras from The Imaging Source >

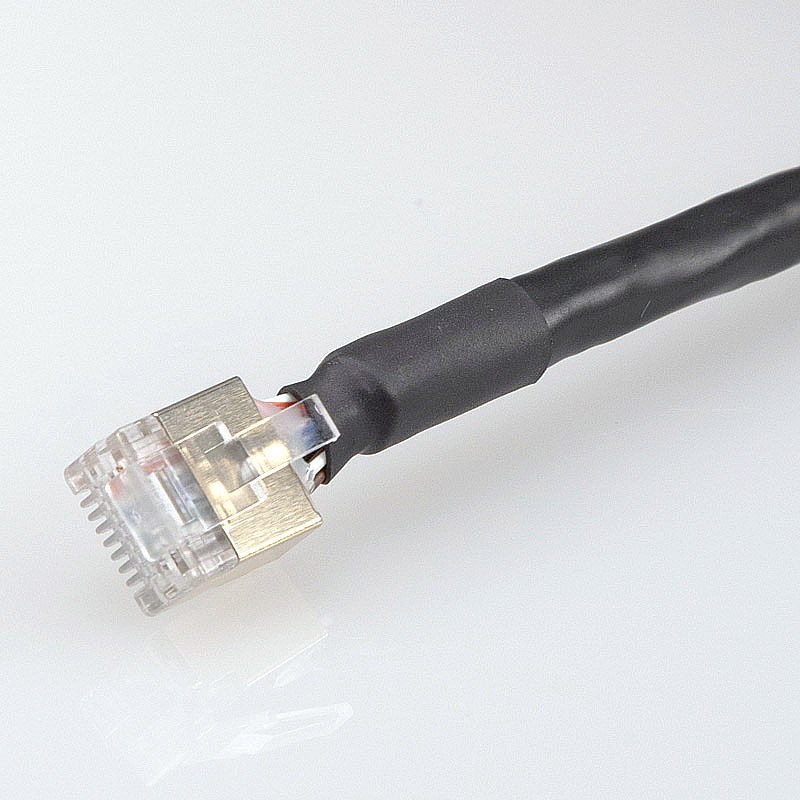

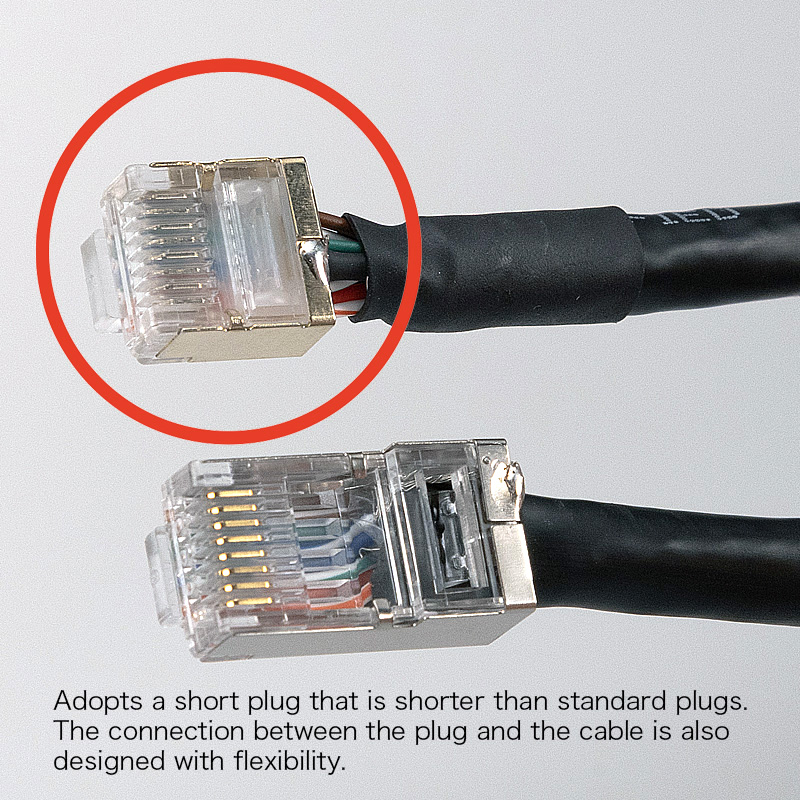

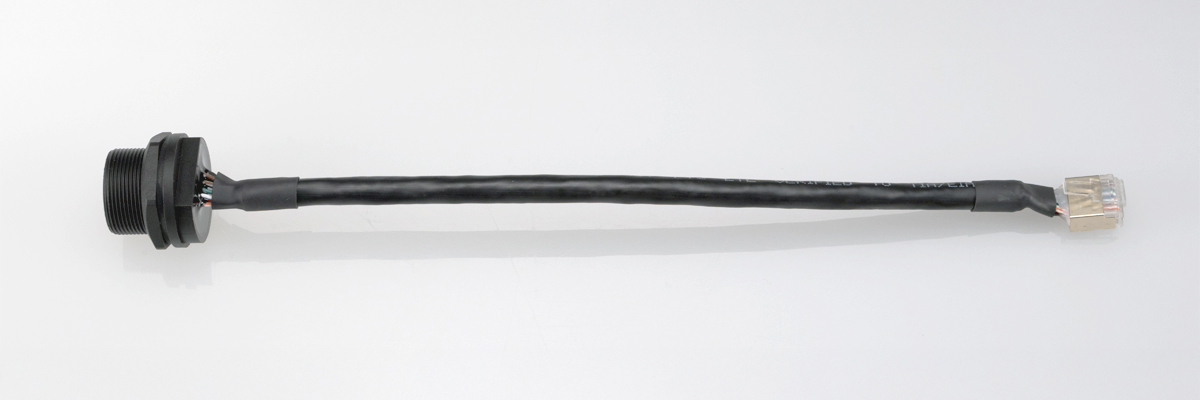

RJ45 (Female) – RJ45 Plug Cat 6A Ethernet Cable
Specifications
Cable Length: 130 mm ±5 mm (cable section only)
Category: Cat 6A
Power Support: PoE+ compatible
Waterproof Connector Rating: IP67 (connector section)
Product Number: CA195-RJ45-PC-FF-130-CT6
Verified Camera Compatibility:
SIP-K568D5
SIP-K676K5 with SDaPo PoE Board
(Verified with cameras from SMTSEC website >)
RJ45 (Female) – RJ45 (Male) Cat 5E Ethernet Cable
Specifications
Cable Length: 300 mm ±5 mm (cable section only)
Category: Cat 5E
Power Support: PoE+ compatible
Waterproof Rating: IP67 (connector section)
Product Number: CA195-RJ45-RJ45-FM-300-CT5
RJ45 (Female) – RJ45 (Male) Cat 6A Ethernet Cable
Specifications
Cable Length: 300 mm ±5 mm (cable section only)
Category: Cat 6A
Power Support: PoE+ compatible
Waterproof Rating: IP67 (connector section)
Product Number: CA195-RJ45-RJ45-FM-300-CT6

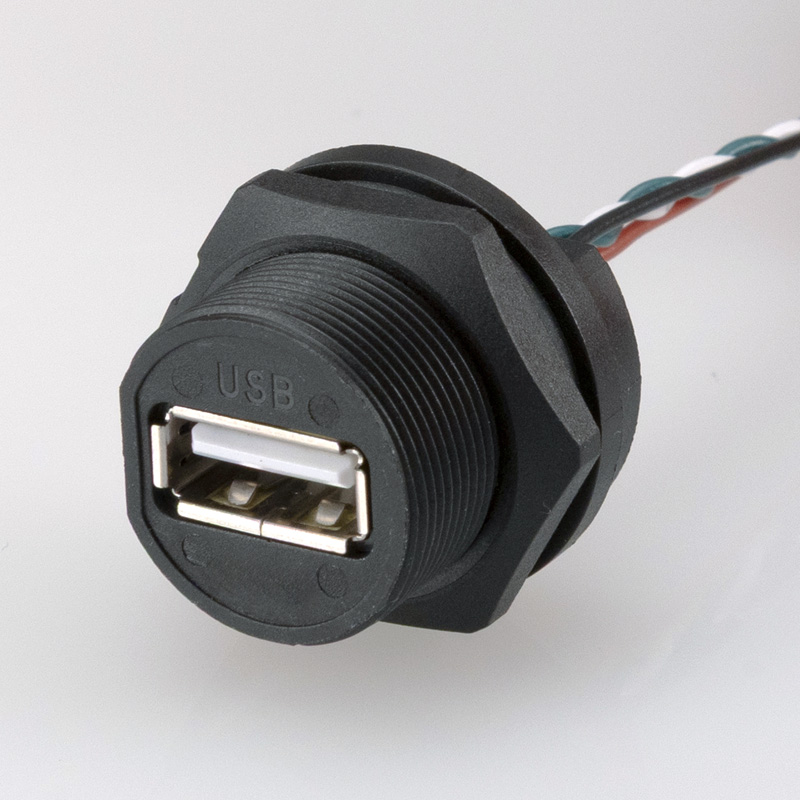

USB Cable with Waterproof Connector
Connector size is 19.5 mm

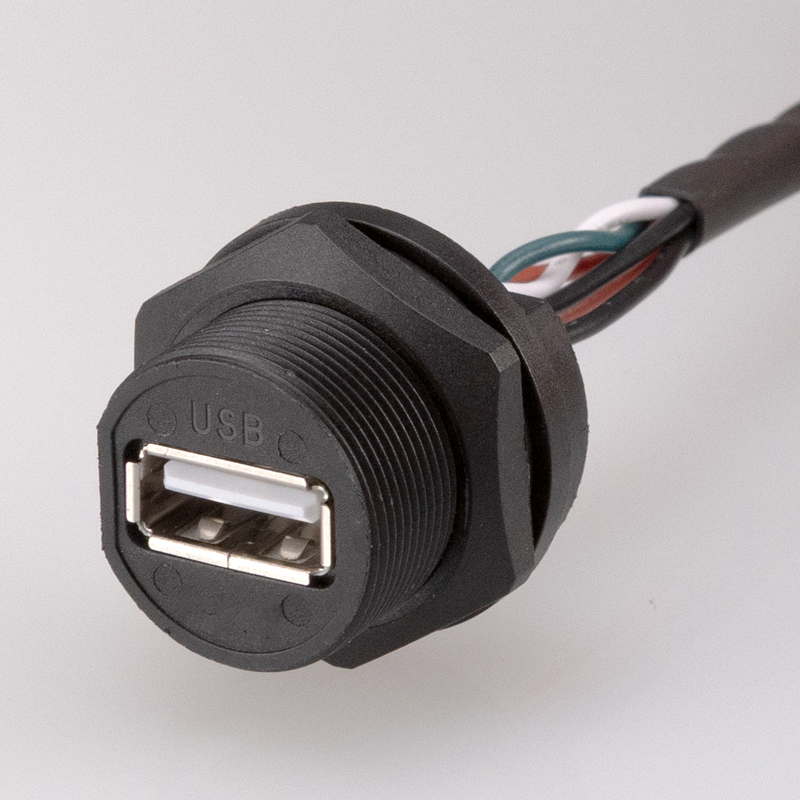

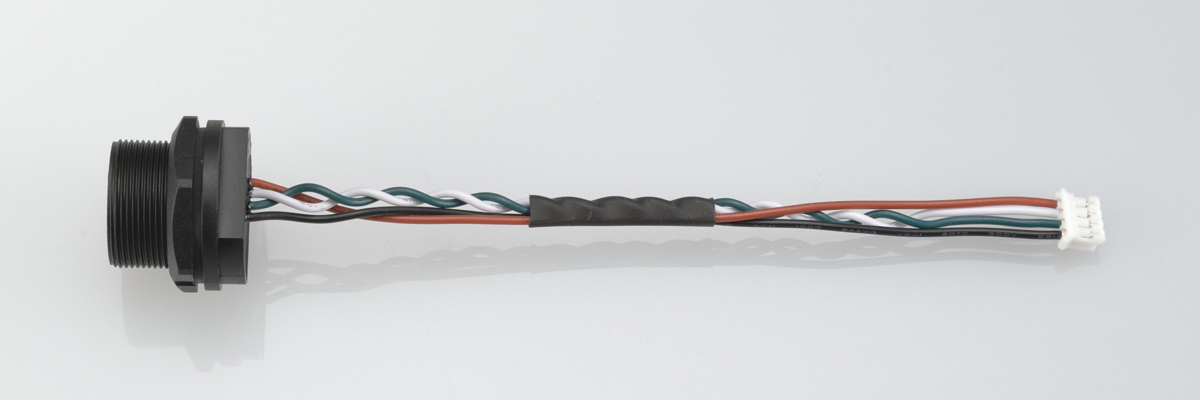

USB Type-A (Female) – UL1007 24AWG to PH2.0-4P Cable
Specifications
Cable Length: 130 mm ±5 mm (cable section only)
Connector 1: USB Type-A Female
Connector 2: PH2.0-4P
Wire Type: UL1007, 24AWG
Waterproof Rating: IP67 (connector section)
Product Number: CA195-USB2-PH20-130
Verified Camera Compatibility
Compatible with cameras from ELP website >

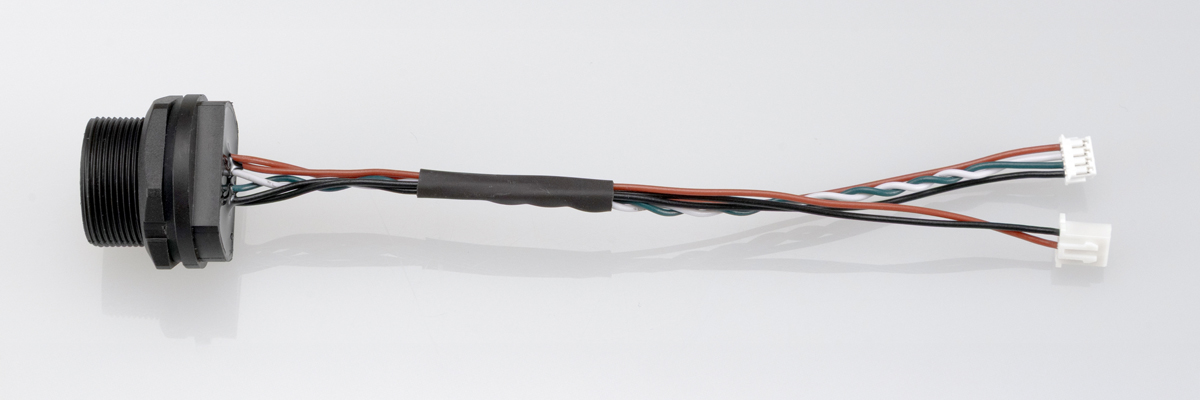

USB Type-A (Female) – PH1.5-4P Cable with UL1571 24AWG Wires
Specifications
Cable Length: 130 mm ±5 mm (cable section only)
Connector 1: USB Type-A Female
Connector 2: PH1.5-4P (1.5 mm pitch, 4-pin)
Wire Type: UL1571, 24AWG
Waterproof Rating: IP67 (connector section)
Product Number: CA195-USB2-PH15-130
Verified Camera Compatibility
Operationally tested with cameras from Arducam >

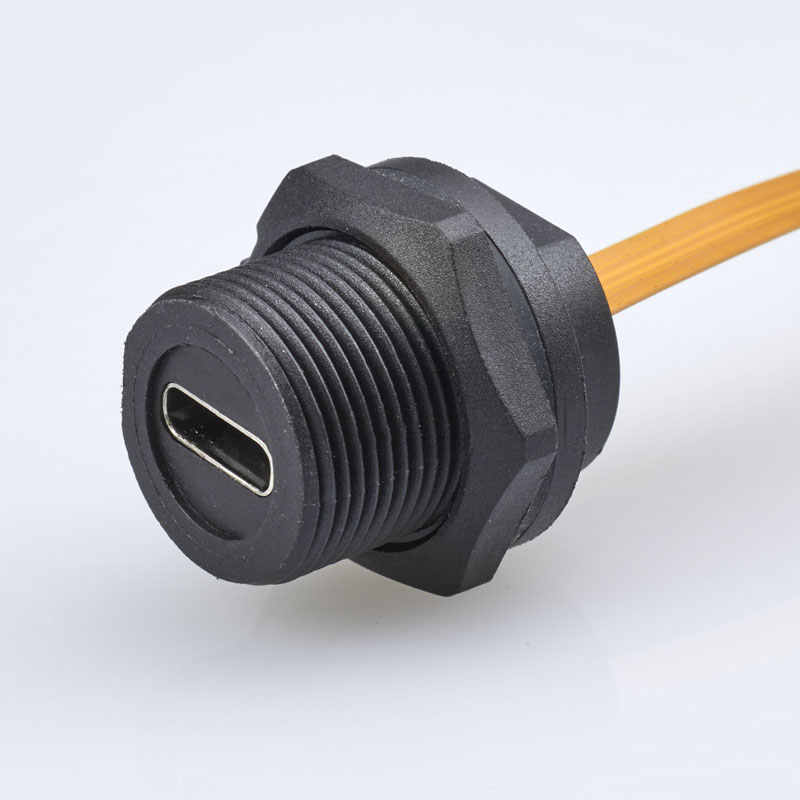

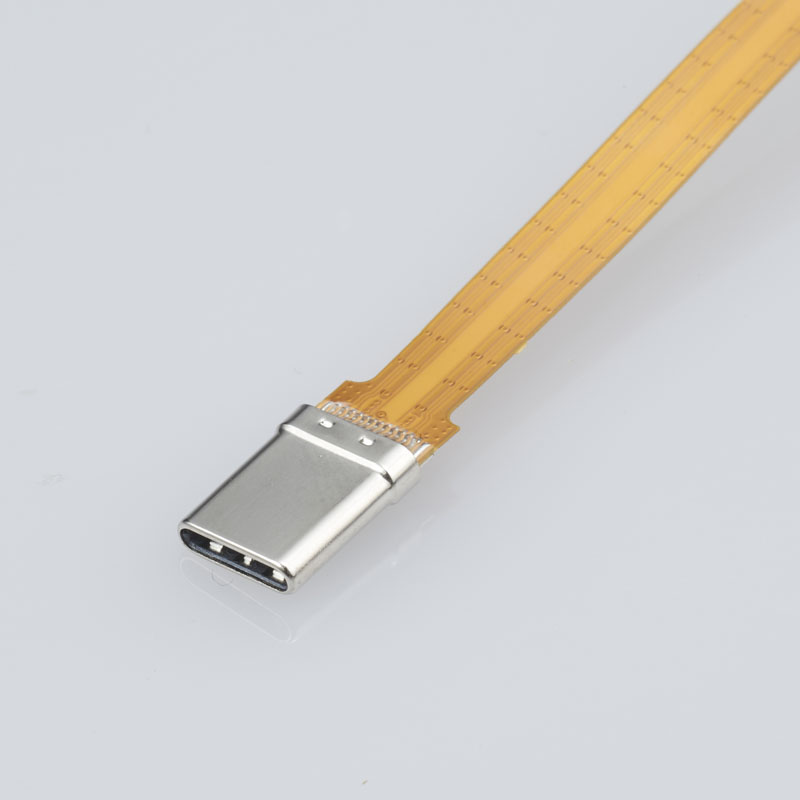

USB Type-C Cable with Waterproof Connector
Connector size is 19.5 mm

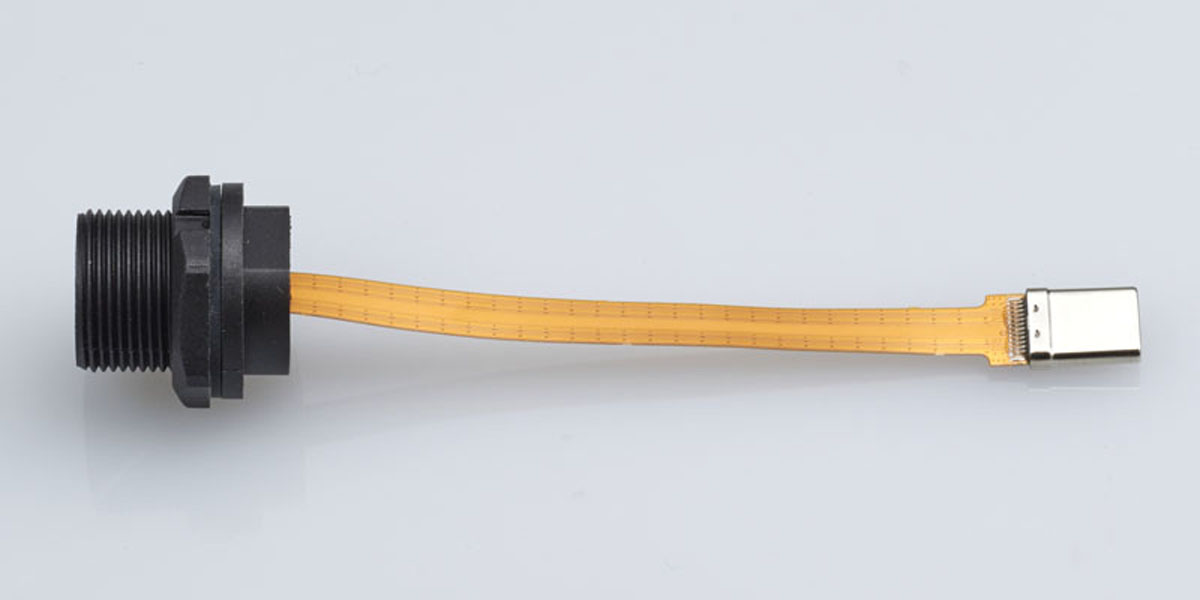

USB Type-C (Female) – USB Type-C (Male) Cable, 100 mm
Specifications
Cable Length: 100 mm ±5 mm
USB Standard: USB 3.2 Gen2x2 (20 Gbps)
Connector Size: Ø15.8 mm
Waterproof Rating: IP67 (connector section)
Product Number: CA158-USBC-USBC-FM-100

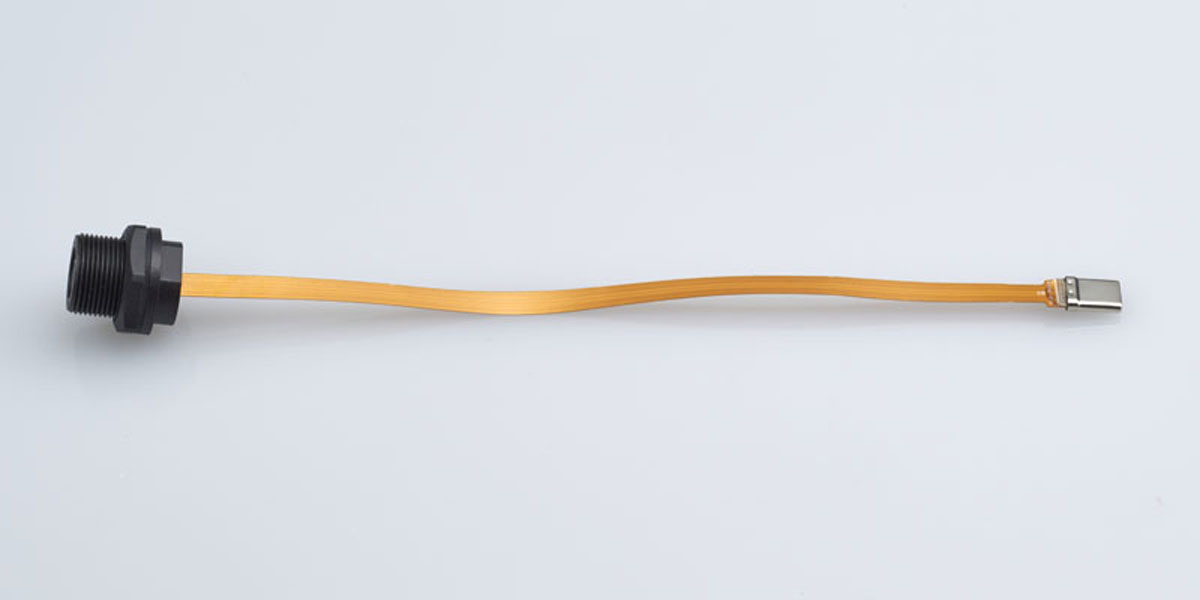

USB Type-C (Female) – USB Type-C (Male) Cable, 200 mm
Specifications
Cable Length: 200 mm ±5 mm
USB Standard: USB 3.2 Gen2x2 (20 Gbps)
Connector Size: Ø15.8 mm
Waterproof Rating: IP67 (connector section)
品番：CA158-USBC-USBC-FM-200
USB Flat Cable
This is a short, flexible flat cable that is convenient for connecting cameras inside cube cases and camera housings.
USB Micro-B / Type-A
Cable Length: 150 mm ±5 mm (cable section only)
Connector Type: USB Micro-B to USB Type-A
Product Number: CA-FL-UMB-UA3-150-A
Cable Length: 150 mm ±5 mm (cable section only)
Connector Type: USB Micro-B to USB Type-A
Product Number: CA-FL-UMB-UA3-150-B
Verified Camera Compatibility:
Tested with cameras from The Imaging Source
USB Micro-B to USB Type-C Cable
Cable Length: 150 mm ±5 mm (cable section only)
Connector Type: USB Micro-B to USB Type-C
Product Number: CA-FL-UMB-UC-150-A
Cable Length: 150 mm ±5 mm (cable section only)
Connector Type: USB Micro-B to USB Type-C
Prodct Number: CA-FL-UMB-UC-150-B
Verified Camera Compatibility:
Tested with cameras from The Imaging Source
USB Mini-B to USB Type-A 2.0 Cable
Cable Length: 150 mm ±5 mm (cable section only)
Connector Type: USB Mini-B to USB Type-A
USB Standard: USB 2.0
Product Number: CA-FL-MUB-UA2-150-A
Cable Length: 150 mm ±5 mm (cable section only)
Connector Type: USB Mini-B to USB Type-A
USB Standard: USB 2.0
Product Number: CA-FL-MUB-UA2-150-B
Verified Camera Compatibility:
Tested with cameras from The Imaging Source
Panel mount cable
This cable with panel mount is convenient for connecting to a camera inside a housing case and installing a connector externally.

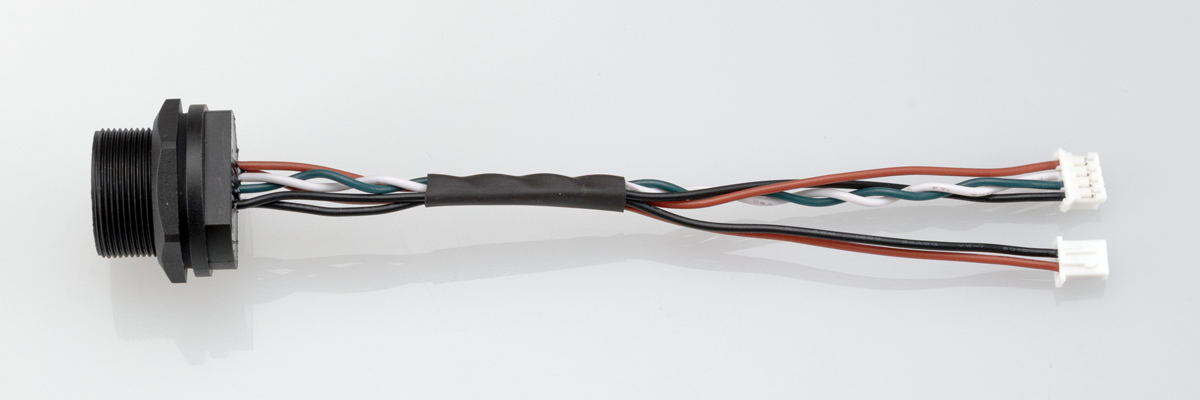

UL1007 24AWG PH2.0-4P
Cable Type: USB Cable
Cable Length: 100 mm ±5 mm (cable section only)
Wire Type: UL1007, 24AWG
Connector: PH2.0-4P
Verified Camera Compatibility:
Tested with cameras from ELP
UL1007 24AWG ZH1.5-4P
Cable Type: USB Cable
Cable Length: 100 mm ±5 mm (cable section only)
Wire Type: UL1007, 24AWG
Connector: ZH1.5-4P (1.5 mm pitch, 4-pin)
Verified Camera Compatibility:
Tested with cameras from Arducam
